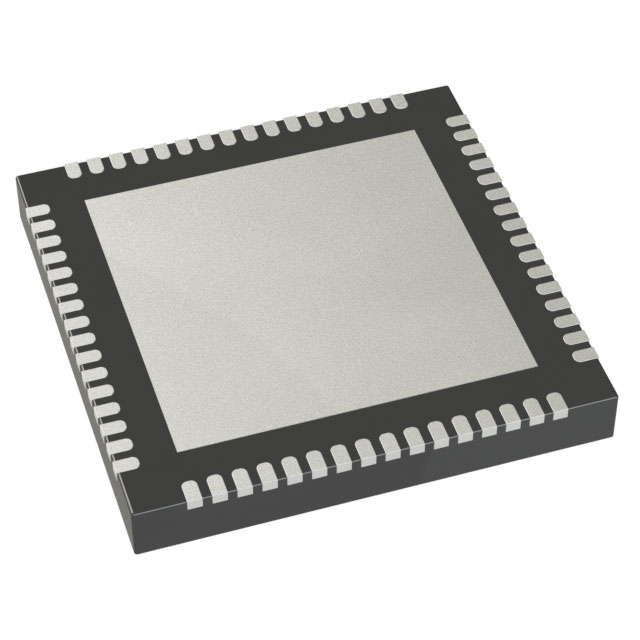

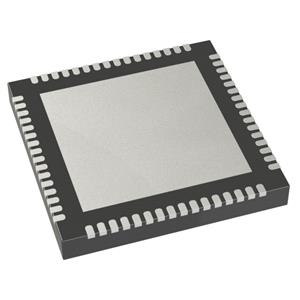

PIC24FJ512GU406-I/MR offer up to 512KB of Dual Partition Flash supporting real-time Over-The-Air updates and EEPROM Emulation. Along with a number of Core Independent Peripherals, the PIC24FJ512GU406-I/MR include a full-speed USB and a segmented LCD controller with animation support. With high memory and sleep current down to a few hundreds of nA while retaining the complete RAM content, these devices are perfect for IoT, industrial, consumer, and medical applications.

Features

64 segments and 8 commons supporting up to 480 pixels

Core independent autonomous animation; Alternating dual display, blinking, and blanking

LCD charge pump for contrast management in battery-powered applications

External bias option for reducing power consumption

Operation in power-saving modes

Configurable as Host, Device, or OTG

DMA Interface for Data RAM Access

2.0V to 3.6V, -40°C to +125°C, AEC Q100 Grade 1 qualified, up to 16 MIPS operation

Single-cycle instruction execution

16 x 16 Hardware Multiply, and 32-bit x 16-bit Hardware Divider

C compiler optimized instruction set system

Ultra-low-power operation with sleep current down to nA with full RAM retention

A range of power-saving modes to reduce current consumption, while balancing performance: PMD bits, DOZE, Idle, Sleep and Retention Sleep modes

A range of Core Independent Peripherals (CIPs) that operate in power saving modes, while off-loading the Central Processing Unit (CPU)

Low-voltage boost for input

Bandgap reference input feature

Core Independent windowed threshold compare feature

Auto-scan feature

Operation in power-saving modes

MPLAB Code Configurator (MCC) support

Peripheral Pin Select (PPS) for flexible pin mapping

Configurable interrupt-on change on all IOs

Applications

Human Machine Interface (HMI)

Industrial and consumer IoT applications

Medical applications

Automotive applications
