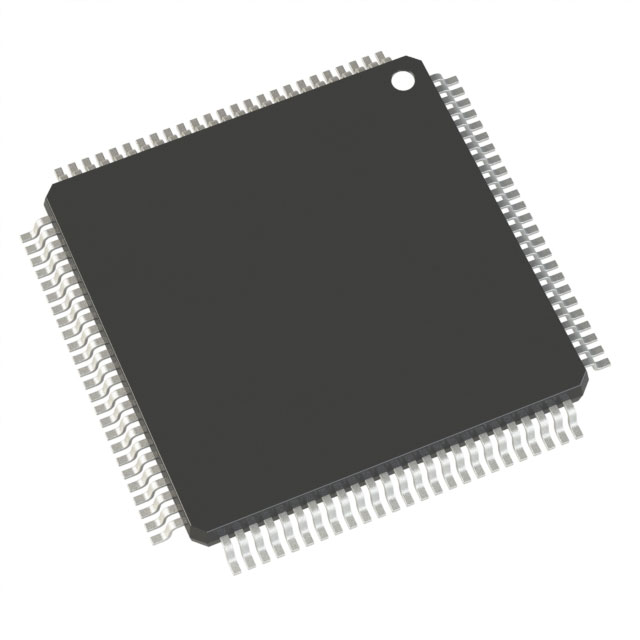

PIC24FJ256GB210T-I/PT 16-bit Microcontrollers is ideal for low power and connectivity applications. The devices offer multiple I2C, SPI, and UART peripherals, and multiple independent timers. These MCUs are available with 8kB to 16kB RAM memory for buffering and 64kB to 256kB Enhanced Flash program memory.

Features

CPU Speed 16MIPS

Memory Type Flash

Temperature Range -40ºC to 125ºC

Operating Voltage Range 2.0V to 3.6V

System Management Features BOR, LVD

Internal Oscillator 8MHz, 31kHz

nanoWatt Features: Low Sleep/Fast Wake/Fast Control

Digital Communication Peripherals 2x UART, 2x SPI, 2x I2C

Analog Peripherals 1-A/D 10x10-bit @ 500(ksps)

On-Chip Voltage Regulator of 1.8V

Switch between Clock Sources in Real Time

Idle, Sleep and Doze modes with Fast Wake-up and Two-Speed Start-up

Run Mode: 800 uA/MIPS, 3.3V Typical

Sleep mode Current Down to 20 uA, 3.3V Typical

Standby Current with 32 kHz Oscillator: 22 uA, 3.3V Typical

Applications

Internet of Things (IoT)

Consumer devices

Industrial automation

Battery-powered devices

Handheld devices

Home appliances

HVAC control

Electricity metering

Security panels

Touch controllers

Fingerprint scanners

Embedded security
