The PIC24FJ256GA704-I/PT introduces high-capacity Flash and SRAM memory in a smaller package size. It is a 16-bit microcontroller with an extensive peripheral feature set and enhanced computing performance.

Core Features

16-Bit Architecture

At the heart of all PIC24F devices is the 16-bit modified Harvard architecture, first introduced in the dsPIC® Digital Signal Controller (DSC).

- 16-bit data and 24-bit address paths to move information between data and addresses. Ability to move information between data and memory spaces Ability to move information between memory spaces

- Linear addressing up to 12 Mbytes (programme space bytes) and 32 Kbytes (data)

- 16 element working register array with built-in software stack support

- 17 x 17 hardware multiplier with integer maths support

- Hardware support for 32 x 16-bit division

- Instruction set with multiple addressing modes Instruction set with multiple addressing modes and for high level languages such as "C

- Runs up to 16 MIPS

Product Attributes of the PIC24FJ256GA704-I/PT

Core Processor: PIC

Core specification: 16-bit

Speed: 32MHz

Connectivity: I²C, IrDA, LINbus, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT

Number of I/O: 36

Program memory capacity: 256KB (85.5K x 24)

Programme Memory Type: Flash

RAM Size: 16K x 8

Voltage - Supply (Vcc/Vdd): 2V ~ 3.6V

Data Converter: A/D 14x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

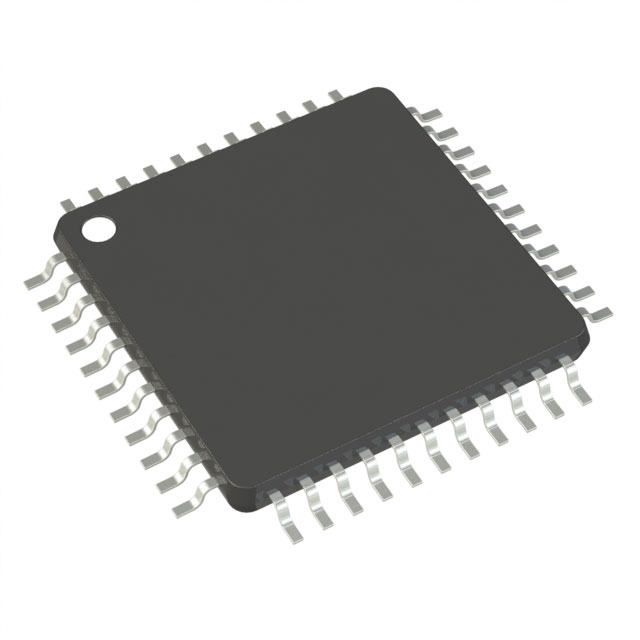

Package/Case: 44-TQFP

Supplier Device Package: 44-TQFP (10x10)
