The 2EDL8023G3C is a high voltage side low voltage side driver designed for advanced switching converters such as telecom and datacom applications. Independent inputs with built-in hysteresis are used to enhance noise immunity. Inherent breakdown protection ensures system robustness. 6 ns maximum delay matching ensures volt-second balance to avoid core saturation.

Product Attributes

Drive Configuration: Half Bridge

Channel Type: Standalone

Number of Drivers: 2

Gate Type: N-Channel MOSFETs

Voltage - Supply: 8V ~ 17V

Current - Peak Output (Pour In, Pull Out): 3A, 5A

Input Type: Non-Inverting

High Side Voltage - Maximum (Bootstrap): 120 V

Rise/Fall Time (typical): 45ns, 45ns

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

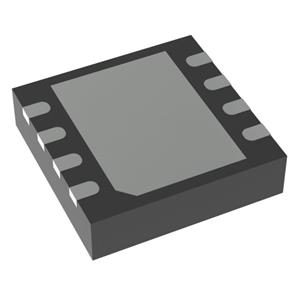

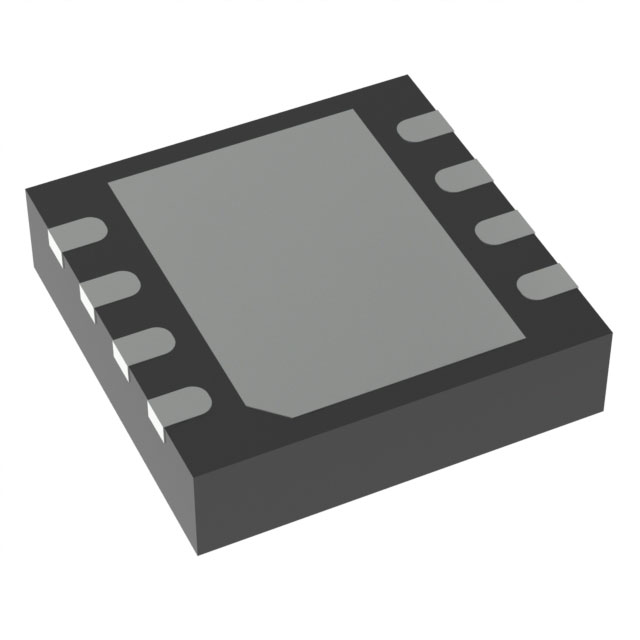

Package/Shell: 8-VDFN Exposed Pad

Supplier Device Package: PG-VDSON-8-4

APPLICATIONS

● DC-DC Converters

● Isolated bus converters

● Synchronous rectification of SMPS

● Class D audio amplifiers
