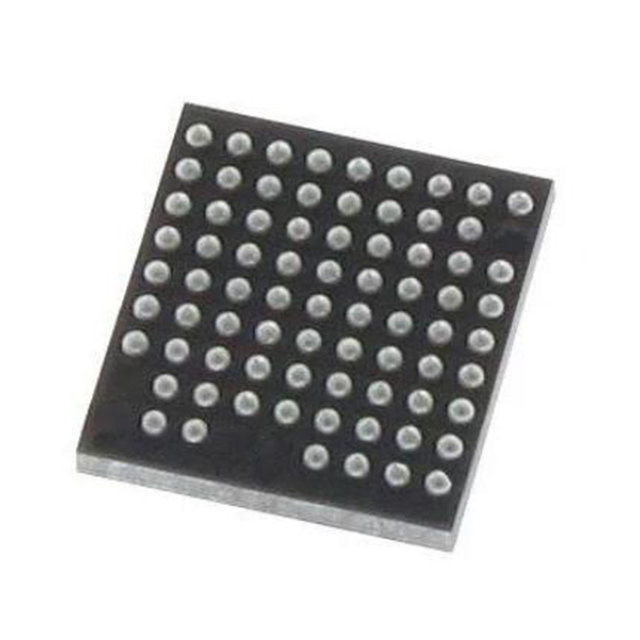

CY8C4248FNI-BL573T is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0 CPU. It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing.

Product Features

• 32-bit MCU subsystem

- 48-MHz Arm® Cortex®-M0 CPU with single-cycle multiply and DMA

- Up to 256 KB of flash with read accelerator

- Up to 32 KB of SRAM

• Bluetooth® LE radio and subsystem

- Bluetooth® LE 4.2 support

- 2.4-GHz RF transceiver with 50-Ω antenna drive

- Digital PHY

- Link-layer engine supporting master and slave modes

- RF output power: –18 dBm to +3 dBm

- RX sensitivity: –89 dBm

- RX current: 18.7 mA

- TX current: 15.6 mA at 0 dBm

- Received Signal Strength Indication (RSSI): 1-dB resolution

• Power management

- Active mode: 1.7 mA at 3-MHz flash program execution

- Deep Sleep mode: 1.5 µA with watch crystal oscillator (WCO) on

- Hibernate mode: 150 nA with RAM retention

- Stop mode: 60 nA
