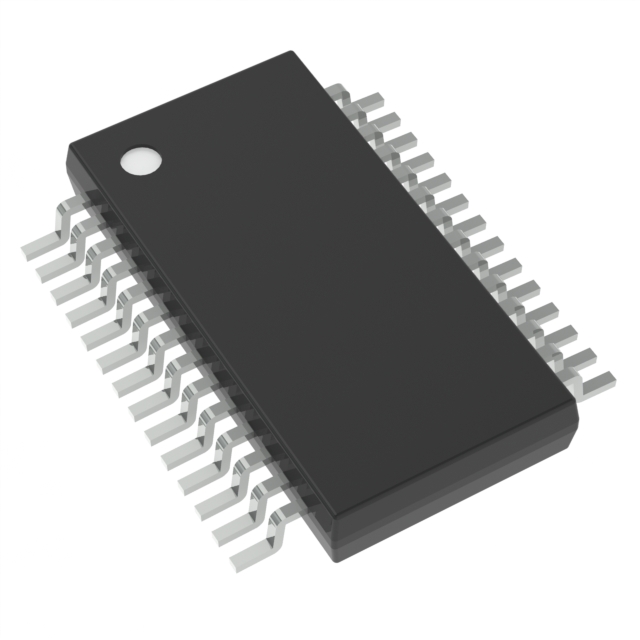

PIC32MK0128MCA028-E/N2X is 32-bit Motor Control Application Microcontroller IC with FPU, ECC Flash, and 128KB Flash, 32 KB SRAM, and Op amps.

Features

Up to four PWM pairs

Leading-edge and Trailing-edge blanking

Dead Time for rising and alling edges

Dead Time Compensation

8.33 ns PWM Resolution

Clock Chopping for High-Frequency Operation

Up to two 2s audio data communication interfaces

Up to two SPI control interfaces

Programmable host dlock:

Generation of fractional clock frequencies

Can be tuned in run-time

Unique Features

Permanent non-volatile 4-word unique device serial number

Flash Error Code Correction (ECC)

Direct Memory Access (DMA)

Up to eight channels with automatic data size detection

Programmable Cydlic Redundancy Check (CRC)

Up to 64 KB transfers

Communication Interfaces

Up to two UART modules (up to 25 Mbps)

Supports LIN 2.1 and IrDA@ protocols

Two SPII2S modules (SPI 50 Mbps)

Two 12C modules (up to 1 Mbaud) with SMBus support

Peripheral Pin Select (PPS) to enable remappable pin functions

Timers/Output Compare/Input Capture/RTCC

Up to five 16-bit or one 16-bit and four 32-bit timers/counters

4 Output Compare (OC) modules

4 Input Capture (IC) modules

PPS to enable function remap

Real-Time Clock and Calendar (RTCC) module

Input/Output

5V-tolerant pins with up to 22 mA source/sink

Selectable intemal open drain, pull-ups, and pull-downs

External interrupts on all I/0 pins

Five programmable edge/level-triggered interrupt pins

Qualification and Class B Support

Back-up internal oscillator

Clock monitor with back-up internal oscillator

Global register locking

Debugger Development Support

In-circuit and in-application programming

2-wire or 4-wire MIPS8 Enhanced JTAG interface

Unlimited software and 12 complex breakpoints
