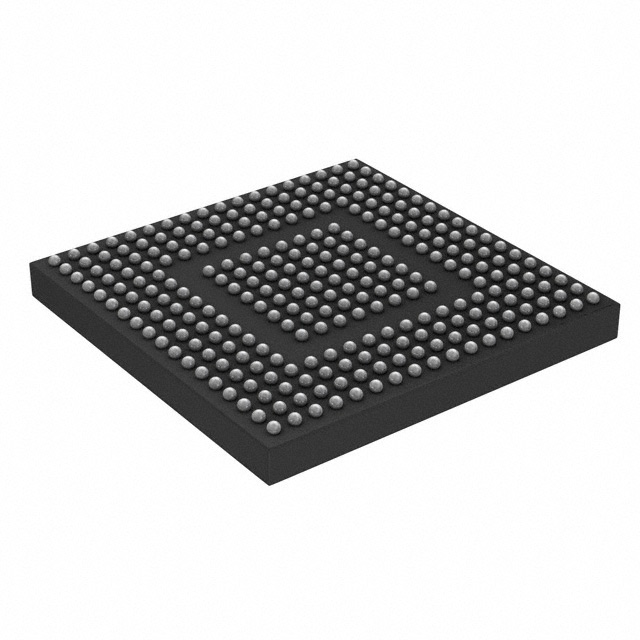

PIC32MZ1064DAA288T-I/4J is 32-bit Graphics Applications MCUs. It feature an integrated graphics controller, graphics processor, and 32MB of on-chip DDR2 DRAM. The PIC32MZ DA MCUs are optimized for Graphical User Interface (GUI) designs. The PIC32MZ DA offers microprocessor-like graphics quality with the ease of design of an MCU.

Product Features

Core: 200 MHz/330 DMIPS MIPS32® microAptiv™

32 KB I-Cache, 32 KB D-Cache

Up to 2MB Flash and 640KB RAM

12-bit ADC Throughput at 18Msps

High-performance 2D Graphics Processing Unit (GPU)

32MB integrated DDR2 DRAM or 128MB externally addressable

High-Speed Communication Interfaces (with Dedicated DMA)

USB 2.0 High-Speed On-The-Go (OTG) controller

10/100 Mbps Ethernet MAC with MII and RMII interface

Up to 45 analog input

Two Comparators with 32 programmable voltage references

Temperature sensor with ±2ºC accuracy

Charge Time Measurement Unit (CTMU)

Six 4-wire SPI modules (up to 50 MHz)

SQI configurable as additional SPI module (up to 80 MHz)

Five I2C modules (up to 1 Mbaud) with SMBus support

Parallel Master Port (PMP)

Peripheral Pin Select (PPS) to enable function remap

5V-tolerant pins with up to 32 mA source/sink
