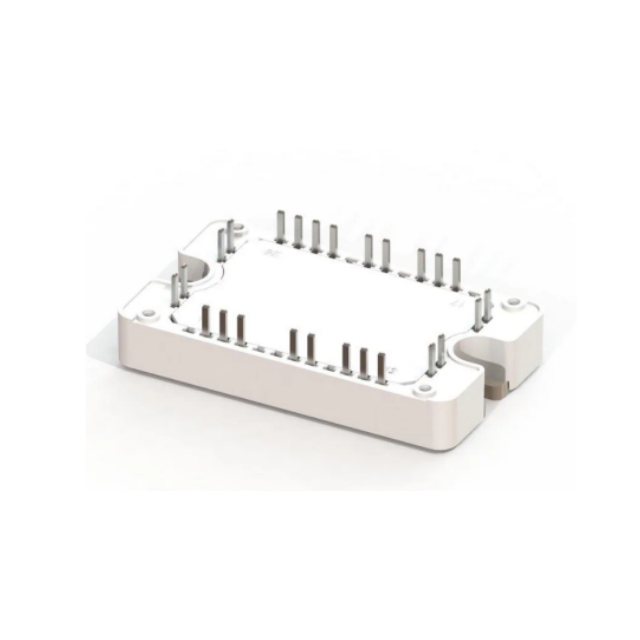

The APTCV60TLM24T3G features ultra-low RDSon, low Miller capacitance, ultra-low gate charge, and avalanche energy rating. The device has low voltage drop, low tail current, switching frequency up to 20 kHz, low leakage current, Kelvin source for easy driving, low stray inductance, internal thermistor for temperature monitoring (optional), excellent device performance in high frequency operation, direct mounting to heatsinks (isolated packages), low junction thermal resistance, and RoHS compliance.

Product Attributes

IGBT Type: Trench Field Cutoff

Configuration: Three-stage inverter

Voltage - Collector Breakdown (max): 600 V

Current - Collector (Ic) (max): 100 A

Power - Max: 250 W

Vce(on) (max) at different Vge, Ic: 1.9V @ 15V, 75A

Current - Collector Cutoff (Max): 250 µA

Input capacitance (Cies) at varying Vce: 4.62 nF @ 25 V

Input: Standard

NTC Thermistor: Yes

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Chassis Mount

Package/Housing: Module

Supplier Device Package: SP3
