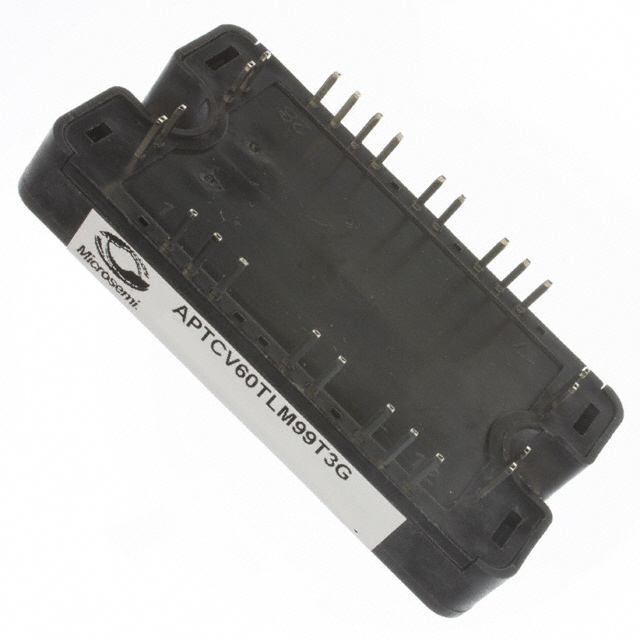

APTCV60TLM99T3G features Q2, Q3 Trench + Field Cutoff IGBT3 with low dropout and low tail current. Switching Frequency up to 20 kHz, Low Leakage Current, Rated RBSOA and SCSOA. Q1, Q4 Super Junction MOSFETs, Ultra-Low RDSon, Low Miller Capacitance, Ultra-Low Gate Charge, Avalanche Energy Rated, Very Rugged. Kelvin emitter, easy to drive, very low stray inductance, highly integrated, internal thermistor for temperature monitoring. Stable temperature characteristics, very rugged, mounts directly to heat sink (isolated package), low junction-to-case thermal resistance, small form factor, RoHS compliant.

Product Attributes

IGBT Type: Trench Field Cutoff

Configuration: Three-Stage Inverter - IGBT, FETs

Voltage - Collector Breakdown (Max): 600 V

Current - Collector (Ic) (max): 50 A

Power - Max: 90 W

Vce(on) at varying Vge, Ic (max): 1.9V @ 15V, 30A

Current - Collector Cutoff (Max): 250 µA

Input capacitance (Cies) at varying Vce: 1.6 nF @ 25 V

Input: Standard

NTC Thermistor: Yes

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Chassis Mount

Package/Housing: SP3

Supplier Device Package: SP3

Applications

● Solar converters

● Uninterruptible power supplies
