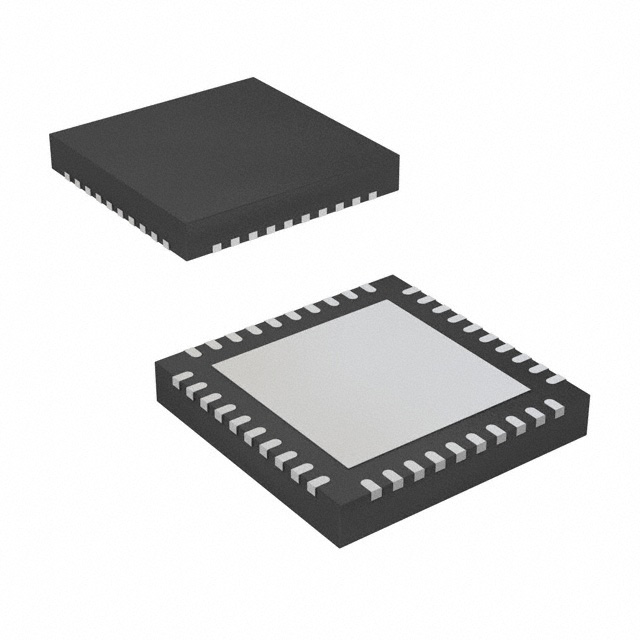

The K32W041Z wireless microcontroller (MCU) is designed to power next-generation, ultra-low-current, multi-protocol wireless devices supporting Zigbee 3.0, Thread, IEEE 802.15.4, and Bluetooth® Low Power 5.0.

Features

CPU and Memory

Up to 48 MHz Cortex-M4

640 KB Flash, 152 KB RAM and 128 KB ROM

NFC NTAG option with EEPROM (K32W061 only)

Quad-SPI for data storage in external NVMs

RF performance/power consumption

Supports Zigbee 3.0, Thread, IEEE 802.15.4, and Low Power Bluetooth 5.0

-100 dBm receive sensitivity

Up to 11 dBm transmit power

RX 4.3mA, DC/DC on at 3V

TX 7.4mA @ 0dBm, 20.3mA @ 10dBm

Multiple flexible low-power modes, <1uA in power-down mode

Low power Bluetooth 5.0 at 2Mbps, up to 8 simultaneous connections

Improved Wi-Fi coexistence

Security

AES256 with hardware protected keys

Hash engine (SHA256)

Code read protection

Digital and analog interfaces

Up to 2 UART/SPI/I2C

ISO7816 interface for secure access module

8-channel 12-bit ADC

1 analog comparator

Digital microphone interface and audio event detection

Clock and Timer

32 MHz and 32.768 kHz crystals

Low and high frequency internal clock sources

4 General Purpose Timers

32K sleep timer

Watchdog timer

RTC with calibration

Operating Conditions

Operating voltage: 1.9 to 3.6V

Junction temperature range: -40 to 125 ºC
