The MCIMX7D7DVM10SD uses heterogeneous multi-core processing architecture of the i.MX 7Dual application processor, its functions are highly integrated. The i.MX 7Dual processor features an advanced Arm® Cortex®-A7 dual core (operating at up to 1.2GHz) and an ARM Cortex-M4 core for the growing interconnect device market.

The i.MX 7Dual processor supports multiple memory types, including 16-bit / 32-bit DDR3L/LPDDR2/LPDDR3-1066, quad-way SPI memory, NAND, eMMC, and NOR.

Specification

Core processors: ARM® Cortex®-A7, ARM® Cortex®-M4

Number of cores/bus width: 2 cores, 32 bits

Speed: 1.0GHz

Coprocessor /DSP: multimedia; NEON™ MPE

RAM controller: LPDDR2, LPDDR3, DDR3, DDR3L

Graphics acceleration: None

Display and interface controller: keypad, LCD, MIPI

Ethernet: 10/100/1000 MBPS (2)

SATA: -

USB: USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2)

Voltage -I /O: 1.8V, 3.3V

Operating temperature: 0°C ~ 95°C (TJ)

Security features: A-HAB, ARM TZ, CAAM, CSU, SJC, SNVS

Mounting type: surface mount type

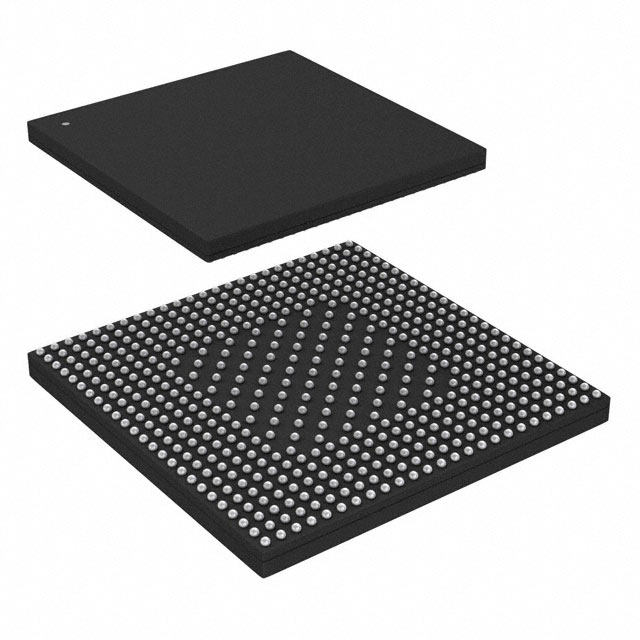

Package/case: 541-LFBGA

Supplier Device package: 541-MAPBGA (19x19)

Additional interface: AC'97, CAN, eCSPI, I²C, I²S, MMC/SD/SDIO, PCIe, QSPI, SAI, UART

Basic product number: MCIMX7

Application

Smart phone

Intelligent household appliance

Networked device

E-book reader

Wearable device

Access control panel

Man-machine interface (HMI)

Portable health care devices

POS machine

Home energy management system
