2EDF7275F is a fast dual-channel isolated MOSFET gate-driver ICs providing functional or reinforced input-to-output isolation by means of coreless transformer technology.

Features

4A/8Aor 1A/ 2 A source / sink output current

Up to 10 MHz PWM switching frequency

PWM signal propagation delay typ. 37 ns with

3 ns channel-to-channel mismatch

+7/-6 ns propagation delay variance

Common Mode Transient Immunity CMTI> 150 V/ns

Fast safety turn-off in case of input side Undervoltage Lockout (UVLO)

Output supply voltage from 4.5 V to 20 V with 4 V or 8 V UVLO threshold

Wide temperature operating range Tj = -40°C to +150°C

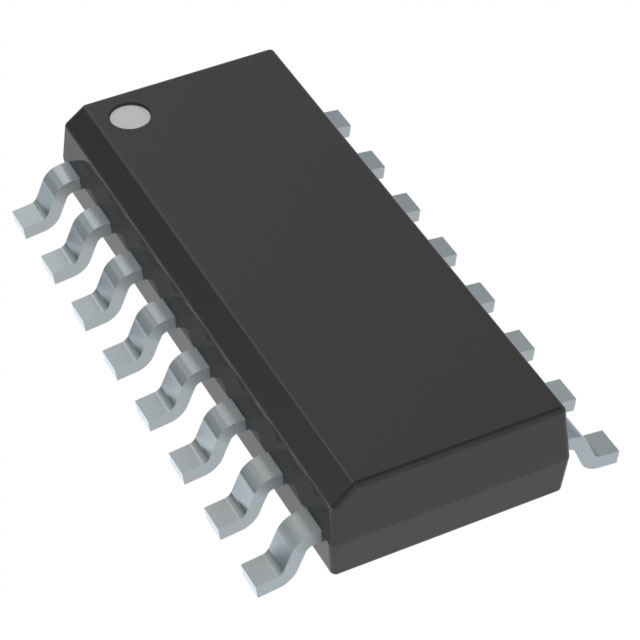

RoHS compliant wide /narrow-body (WB/NB) DSO16 and 5 mm x 5 mm LGA packages

Fully qualified according to JEDEC for Industrial Applications

Applications

Server, telecom and industrial SMPS

Synchronous rectification, brick converters, UPS and battery storage

EV charging industry automation, motor drives and power tools
