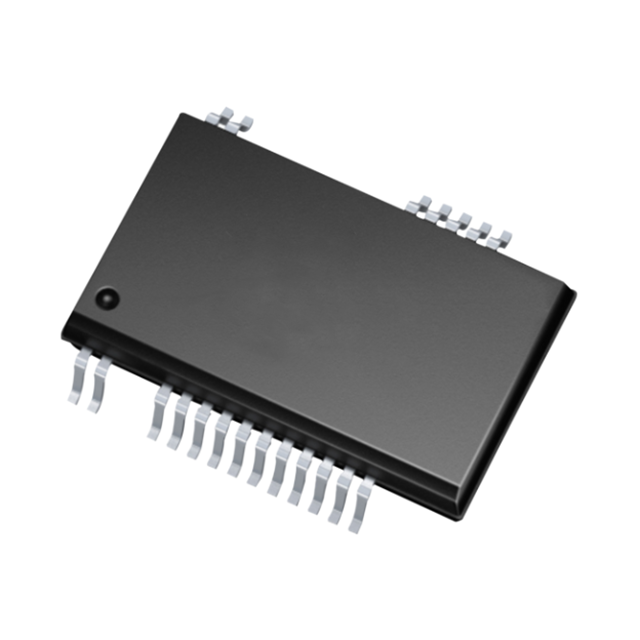

2ED1321S12M has symmetric undervoltage lockout levels, which support strongly the integrated ultrafast bootstrap diode.

Features

Unique Infineon Thin-Film-Silicon On Insulator (S0l)-technology

Floating channel designed for bootstrap operation

Maximum bootstrap voltage (VB node) of + 1225 V

Operating voltages (VS node) upto + 1200V

Negative VS transient voltage immunity of 100V

With repetive 700 ns pulses

2.3 A/ 4.6 A peak output source / sink current capability

Integrated ultra-fast over-current protection (OCP)

5% high accuracy reference threshold

Less than 1 us over-current sens to output shutdown

Integrated ultra-fast, low resistance bootstrap diode

Integrated dead-time and shoot- through prevention logic

Enable, Fault, and programmable Fault clear RFE input

Logic operational up to -8 V on VS Pin

Independent per channel undervoltage lockout

25 V VCC supply voltage

Separate Logic and output ground

Greater than 5 mm clearance / creepage

2 kV HBM ESD capability

Applications

Industrial Drives

Embedded inverters for Motor Control in Pumps, Fans

Commercial and Lite Commercial Air Conditioning
