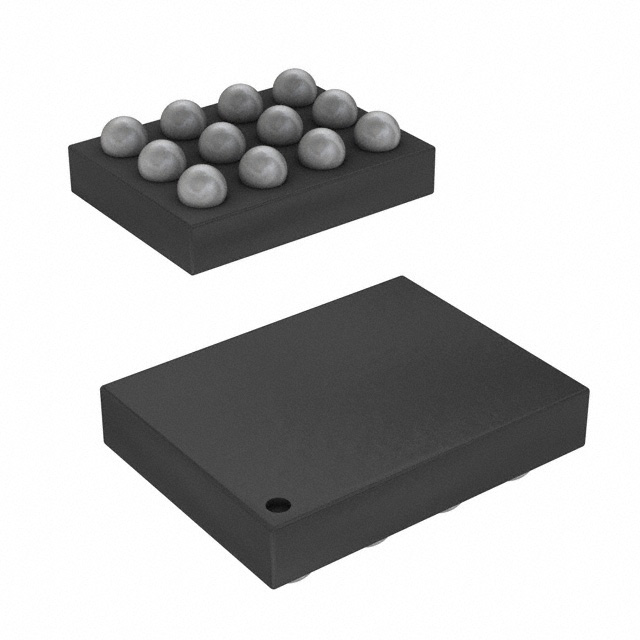

NX30P0121UKZ is an advanced 3A unidirectional power switch. It includes Undervoltage Lockout (UVLO), Overvoltage Lockout (OVLO) in VOUT, OVLO adjustable pin and over-temperature protection circuits.

Features

Wide supply voltage range from 2.5V to 20V

Switch maximum 3A continuous current

29V tolerance on both VIN and VOUT pin

54mΩ (typical) Low ON resistance

Adjustable overvoltage protection threshold, internal 14.5V VOUT OVLO

Built in slew rate control for inrush current limit

ISNS to monitor input current from VIN to VOUT

Protection circuitry

Over-temperature protection

Overvoltage protection

Undervoltage lockout

ESD protection

HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 2 kV

CDM (JESD22-C101E)

Specified from -40°C to +85°C

Applications

Smartphone

Tablet

Other portable electronic devices
