Trade Name:NXH3670UK
Data Manual:NXH3670UK.pdf
Brand:NXP
Particular Year:23+
Package:WLCSP-34
Delivery Date:New and Original
Stock: 10000pcs

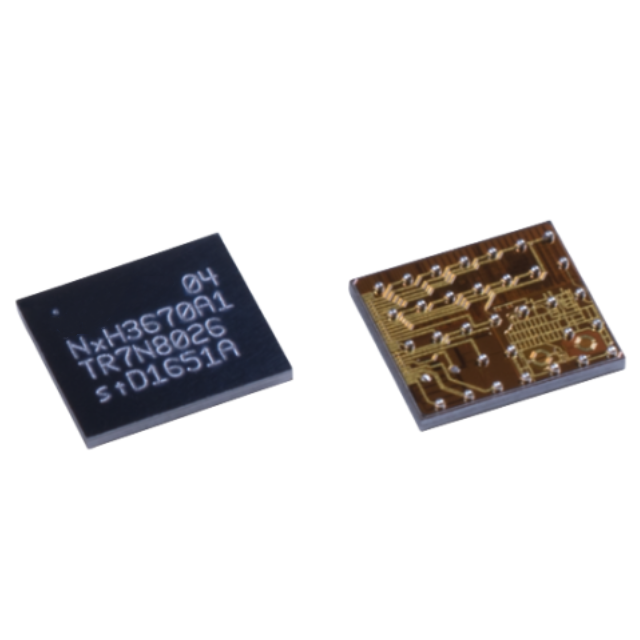

The NXH3670UK constitutes a highly integrated, single chip ultra-low power 2.4 GHz wireless transceiver with embedded MCU, targeted at wireless audio streaming for hearables, wireless headsets, and headphones.
The NXH3670UK chip integrates the following key functionalities – among others:
• A 2.4 GHz RF transceiver and digital modem supporting up to 2 Mbits/s
• Supporting Bluetooth Low Energy GFSK modulation 1 Mbps and 2 Mbps
• A low-power 16 MHz/32 MHz crystal oscillator and on-chip oscillators
• An RF MAC for supporting the lower protocol layers
• A Cortex-M0 subsystem for system control and higher protocol layers
• An AES-128 security coprocessor
• Audio interfaces and audio processing accelerators
• A CoolFlux DSP for audio processing
• Multiple user interfaces for control, data, debug, and test
Applications
The main application target is gaming headsets, wireless headsets, and headphones.
Thanks to its support for audio, control and data, the NXH3670UK can be used in many applications where ultra-low power and small size are required.
Additional typical applications are mobile phone accessories and computer peripherals
