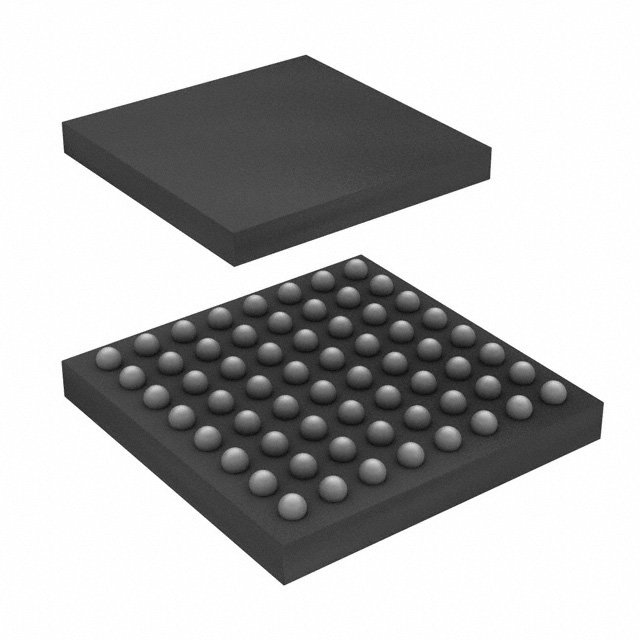

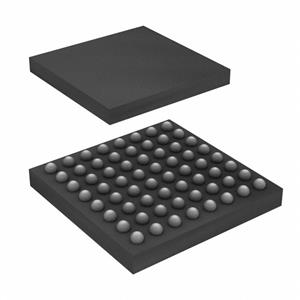

ATSAMR35J18B-I/7JX is a family of ultra-low power microcontrollers combined with a UHF transceiver communication interface. It uses a 32-bit ARM® Cortex® -M0+ processor and offers up to 256 KB of Flash and 40 KB of SRAM, including an area of battery backed-up SRAM.

Product Features

ARM Cortex -M0+ CPU running at up to 48 MHz (2.46CoreMark®/MHz)

Single-Cycle Hardware Multiplier

Micro Trace Buffer (MTB)

In-System Self-Programmable Flash Memory, with options for sizes - 256 KB, 128 KB or 64 KB

Static Random Access Memory (SRAM) with options for sizes - 32 KB, 16KB or 8 KB

Low power SRAM Memory with option for sizes - 4 KB or 8 KB

External Interrupt Controller (EIC)

Up to 16 External Interrupts

One Non-Maskable Interrupt

Two Pin Serial Wire Debug (SWD) Programming, Test and Debugging Interfaces

Operating Voltage: 1.8V- 3.6V

Temperature Range: -40°C to +85°C (Industrial)

Up to 168 dB Maximum Link Budget

Robust Front-End: IIp3 = -11 dBm

Excellent Blocking Immunity

Low RX Current of 17 mA (typical)

Fully Integrated Synthesizer with a Resolution of 61 Hz

LoRa Technology, (G)FSK, (G)MSK and OOK Modulation

Preamble Detection

127 dB Dynamic Range RSSI
