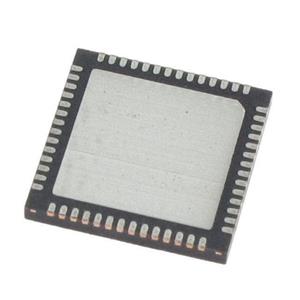

The CY8C4127LQI-BL493T BLE embedded system controller features a scalable and configurable platform for embedded system controllers. Powered by an ARM® Cortex™-M0 CPU, the controller combines programmable and configurable analogue and digital blocks with flexible auto-routing.The CY8C4127LQI-BL493T BLE combines a microcontroller with integrated Bluetooth Low Energy (BLE), also known as Bluetooth Smart, Radio and Subsystems (BLESS). Features digital programmable logic, high performance, analogue-to-digital conversion (ADC) and operational amplifiers.

Product Attributes

Product Category: RF Microcontrollers - MCUs

Core: ARM Cortex M0

Operating Frequency: 2.4 GHz

Data bus width: 32 bit

Program memory size: 128 kB

Data RAM size: 16 kB

Maximum clock frequency: 24 MHz

ADC resolution: 12 bit

Supply voltage - min: 1.71 V

Supply voltage - max: 5.5 V

Maximum operating temperature: + 85 C

Package / Case: QFN-56

Mounting style: SMD/SMT

Data Ram Type: SRAM

Interface Type: I2C, SPI, UART

Minimum Operating Temperature: - 40 C

Humidity Sensitivity: Yes

Number of ADC channels: 12 Channel

Number of Inputs/Outputs: 36 I/Os

Number of timers: 4 x 16 bit

Operating supply voltage: 1.71 V to 5.5 V

Output power: - 18 dBm to + 3 dBm

Processor family: CY8C4xxx-BL

Program memory type: Flash

Family: CY8C4127

Technology: Si

Brand Name: PSoC 4

Unit weight: 191.400 mg
