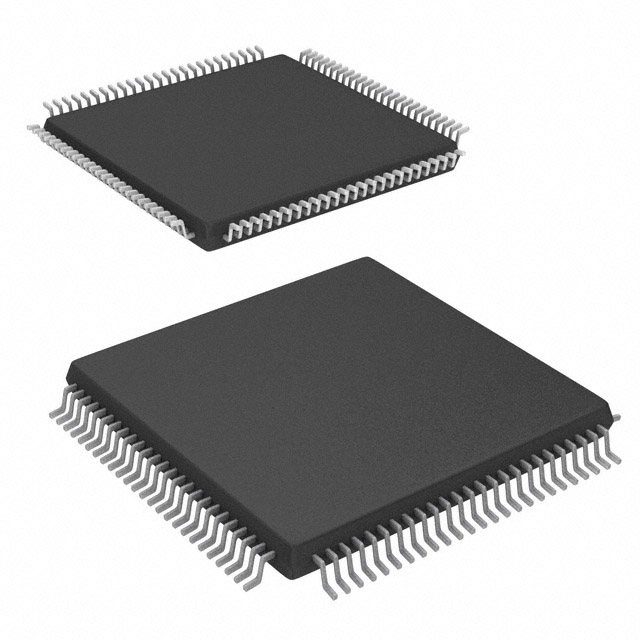

For picture reference, please see the specifications
< >

Commodity Model:ATSAME51N20A-AF

Trade Name:ATSAME51N20A-AF

Data Manual:ATSAME51N20A-AF.pdf

Brand:Microchip

Particular Year:23+

Package:TQFP-100

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Microchip
Model
ATSAME51N20A-AF
Package
TQFP-100
Describe
ARM Microcontroller - MCU 120MHZ 1024KB Flash 100 TQFP PKG inTray 125CTemp

Product Description

Running at up to 120MHz, the ATSAME51N20A-AF microcontrollers feature up to 1MB of dual-sided Flash memory with Error Correcting Code (ECC), making it easy to perform real-time updates without interrupting a running system. In addition, these MCUs are available with up to 256KB of SRAM with ECC, which is critical for mission-critical applications such as medical devices or server systems.


Features

ARM Cortex-M4F core running at 120MHz with single precision floating point unit (FPU)

Internal memory architecture with user-configurable tightly coupled memory, system memory, memory protection unit and 4KB combined I-cache and D-cache

Quad Serial Peripheral Interface (QSPI) with Execute-in-Place (XIP) support

Up to 2 Secure Digital Host Controllers (SDHC)

10/100 Ethernet MAC with IEEE1588 support (E53/E54)

Dual-channel Bosch CAN-FD 1.0 controller (E51/E54)

Peripheral Touch Controller (PTC) with support for up to 256 capacitive touch channels

Full-speed USB with embedded host/device

Supports 5 low-power modes with leading 65µA/MHz active power performance

Integrated security including symmetric (AES) and asymmetric (ECC) encryption, public key exchange support (PUKCC), TRNG and SHA-based memory integrity checker

Dual 1Msps, 12-bit ADCs, up to 32 channels, with offset and gain error compensation

Dual 1Msps, 12-bit DACs and analogue comparators

Serial communication (SERCOM) port, configurable as UART/USART, ISO 7816, SPI or I2C

48-pin to 128-pin package options

Operating temperature range: AEC-Q100 compliant Class 1 (-40°C to +125°C)


Applications

Automotive

Safety

Human Machine Interfaces (HMI)

Home appliances

Connectivity

Industrial Automation
