The TLE92108-231QX is a multi-MOSFET driver IC designed to control up to 16 n-channel MOSFETs. It consists of eight half-bridges for DC motor control applications, such as automotive power seat control or other applications. This device provides a wide range of diagnostic functions, such as monitoring power supply voltage, charge pump voltage, temperature warning, and overtemperature shutdown. Each gate driver independently monitors its external MOSFET drain-source voltage for failure.

Device: TLE92108231QXXUMA1

Drive configuration: half bridge

Channel type: Synchronous

Number of drives: 2

Gate type: IGBT, N channel MOSFET

Voltage - Power supply: 6V ~ 28V

Logic voltage - VIL, VIH: -

Current - Peak output (input, pull out) : 100mA, 100mA

Input type: non-inverting

High voltage side voltage - Max (bootstrap) : 950 V

Rise/fall time (typical value) : -

Operating temperature: -

Mounting type: Surface mount type

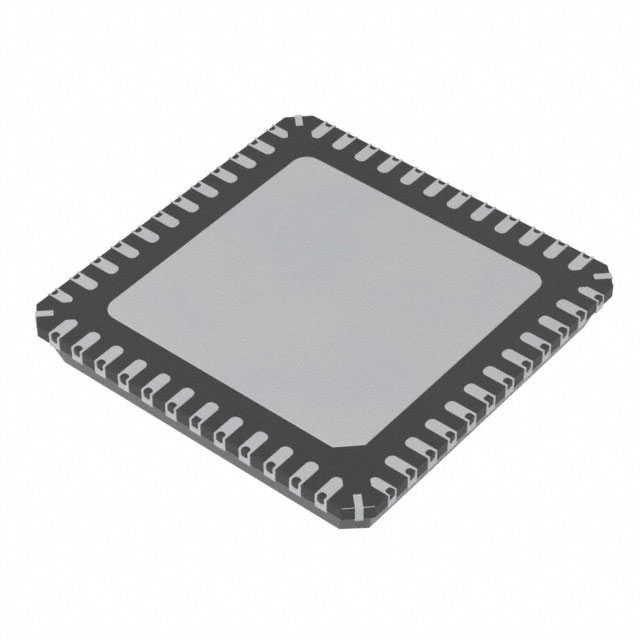

Package/housing: 48-VFQFN bare pad

Supplier device package: PG-VQFN-48-31

Basic product number: TLE92108231

Typical application

• Seat control and expansion functions (steering column adjustment, gas pedal adjustment)

• Central door lock

• Body control modules (trunk lid, washer pump, window lifter, rear wiper...)
