The 2EDL05N06PJXUMA1 is a family of 600-V half-bridge gate drivers featuring Infineon's thin-film-SOI technology for excellent ruggedness and noise immunity. The Schmitt-flip-flop logic inputs are compatible with standard CMOS or LSTTL logic down to 3.3 V. The output drivers feature a high pulse-current buffer stage designed to minimise driver cross-conduction. The floating channel can be used to drive N-channel power MOSFETs or IGBTs in high-side configurations operating up to 600 V. Additionally, the offline clamping feature provides inherent protection against parasitic conduction by floating the gate condition when the IC is not supplied.

Product Attributes

Drive Configuration: Half Bridge

Channel Type: Standalone

Number of drivers: 2

Gate Type: IGBT, N-Channel, P-Channel MOSFETs

Voltage - Supply: 10V ~ 25V

Logic Voltage - VIL, VIH: 1.1V, 1.7V

Input Type: Non-Inverting

High Side Voltage - Max (Bootstrap): 600 V

Rise/Fall Time (typical): 48ns, 24ns

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

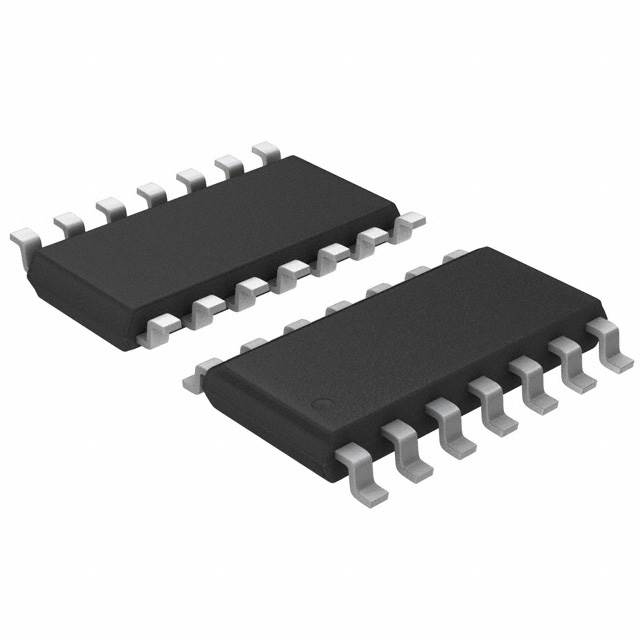

Package/Shell: 14-SOIC (0.154", 3.90mm Width)

Supplier Device Package: PG-DSO-14-2

Applications

● Motor drives, general-purpose inverters

● Refrigeration compressors, household appliances

● Half- and full-bridge converters in offline AC and DC power supplies for telecommunications and lighting
