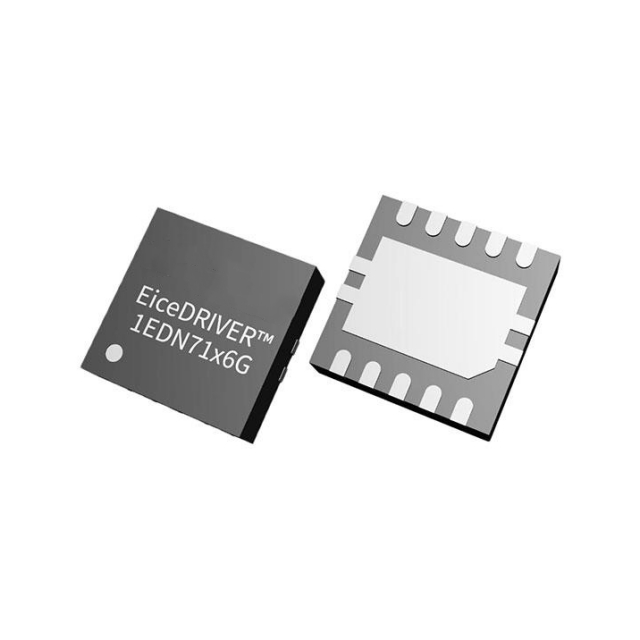

The 1EDN7116GXTMA1 is a single-channel gate driver IC optimised to drive Infineon CoolGaN™ Schottky gate. HEMTs, as well as other GaN SG HEMTs and Si MOSFETs.The gate driver has several key features that enable high-performance system designs with fast-switching transistors, including true differential inputs TDIҚ, four drive strength options, active Miller clamping, bootstrap voltage clamping and adjustable charge pump.

Product Attributes

Drive configuration: high voltage side or low voltage side

Channel type: stand-alone

Number of drivers: 2

Gate Type: N-Channel MOSFETs

Voltage - Supply: 4.2V ~ 11V

Current - Peak Output (Pour In, Pull Out): 2A, 2A

Input Type: Non-Inverting

Rise/Fall Time (Typical): 3ns, 3ns

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package/Shell: 10-VFDFN Exposed Pad

Supplier Device Package: PG-VSON-10-4

Applications

● Single channel

● Synchronous rectifiers

● Class E resonant wireless power

● Half-bridge ҙу x тEDNшт x чGҚ:

● DC-DC converters

● BLDC/PMSM motor drivers

● Class D audio amplifiers

● Class D resonant wireless power supplies
