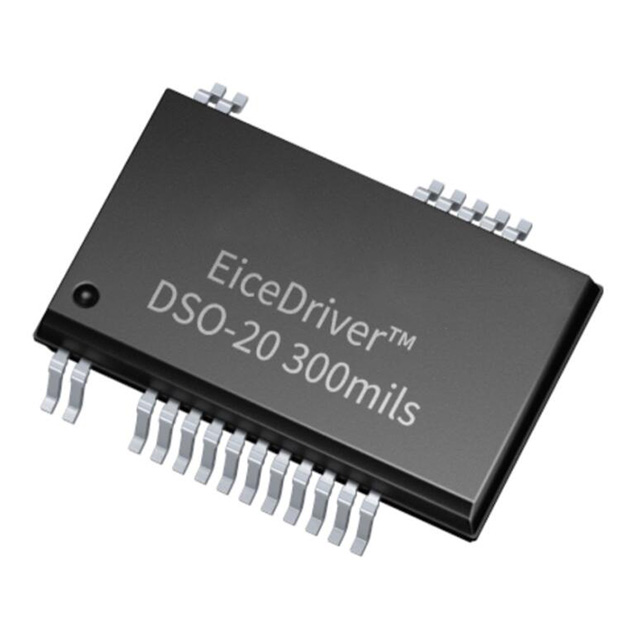

2ED1324S12PXUMA1 is 1200 V half-bridge gate driver IC with AMC (Active Miller Clamp), SCC (Short Circuit Clamp). It supports Active Miller Clamp (AMC), Short Circuit Clamp (SCC) and Cross conduction prevention for the best in class switching performance in the sufficient creepage/clearance distance package DSO-20.

Benefits

1200 V High current capability (2.3 A/2.3 A) with Integrated bootstrap diode in tiny foot print provides reduced BOM cost, smaller PCB space at lower cost with simpler design

Optimized gate driver solution with design flexibility for 1200V IGBT/SiC based PIM, discrete switch

100 V negative VS increased reliability / robustness

50% lower level shift losses leads lower temperature operation and higher reliability

Active Miller Clamp supports very stable switching performance for whole power device, specially the low threshold one ; SiC etc.

Short Circuit Clamp removes gate voltage rise at short circuit situation

Latch-up immune increased reliability

Fast and accurate integrated over-current protection, provides space and cost savings compare to a discrete op-amp component solution while protecting the switches

Under-voltage lockout provides protection at low supply voltage

Wider Creepage and clearance distance in DSO-20 package

Applications

Ceiling fan - motor control and drive solutions

Heating ventilation and air conditioning (HVAC)

Industrial motor drives and controls

Residential heat pumps
