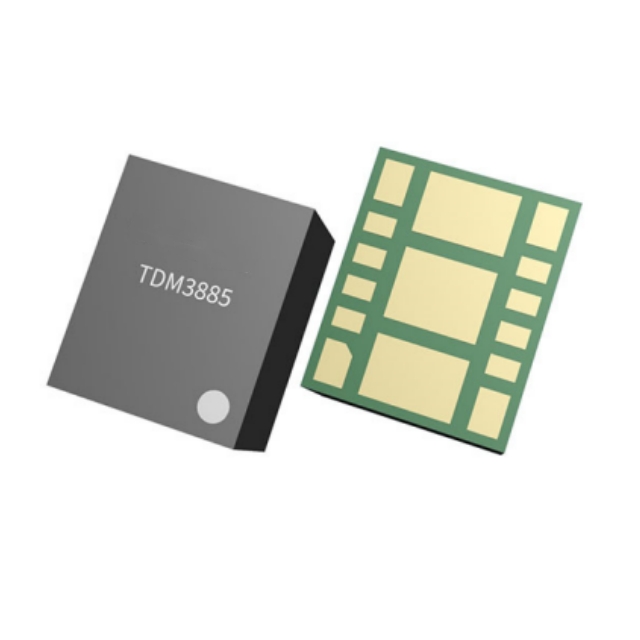

The TDM3885XUMA1 is an easy-to-use, fully integrated, high-efficiency DC/DC module. The module's PWM controller, MOSFETs and inductors make the TDMфщщц a space-saving solution that delivers accurate power delivery.The TDM3885 features an enhanced stabilisation engine that eliminates the need for compensation using ceramics. It can operate in forced continuous conduction mode (FCCM) or enter diode emulation mode (DEM) at light loads to save power. At ultra-light loads, the TDM3885 can enter a low quiescent current mode, making it ideal for standby power. The switching frequency of 600kHz provides an optimal solution.

Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Min): 4.7V

Voltage - Input (Max): 14V

Voltage - Output (Min/Fixed): 0.5V

Voltage - Output (Max): 5V

Current - Output: 4A

Frequency - Switch: 600kHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package/Housing: 15-FLGA

Supplier Device Package: PG-LGA-15-1

Applications

● Servers and computing

● Storage and applications

● Communication infrastructure

● General purpose DC-DC converters

● Distributed point-of-load power architecture
