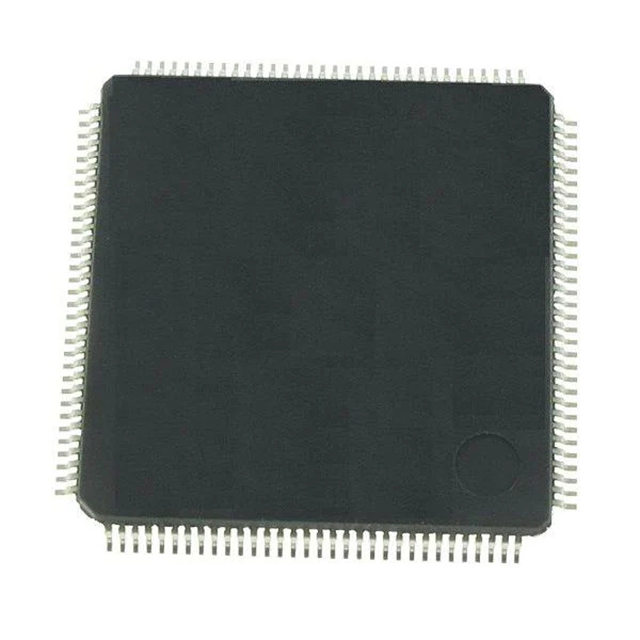

CYAT837AZA77-42002 is PSoC™ Automotive Multitouch Generation 7XL Multichip Touchscreen Controller.

Features

Automotive Electronics Council (AEC) AEC-Q100 qualified

Multi-chip capacitive touchscreen controller

32-bit Arm® Cortex® CPU

Register-configurable

Noise-suppression technologies for display and EMI

Effective 20-V drive for higher signal-to-noise ratio (SNR)[1]

AutoArmor improves both electromagnetic emissions and immunity

Water rejection and wet-finger tracking using DualSense

Multitouch glove with automatic mode switching

Ten fingers with thin glove (≤1-mm thick)

Two fingers with thick glove (≤5-mm thick)

Fingernail tracking

Large object rejection

Automatic baseline tracking to environmental changes

Field upgrades via bootloader

Manufacturing test kit (MTK)

Android driver support

Touchscreen sensor self-test

System performance (configuration dependent)

Screen sizes up to 35-inch diagonal

6-mm electrode pitch; 16:10 aspect ratio

Up to 296 sense pins, 10320 intersections

Reports up to ten fingers

Small finger support down to 5 mm

Refresh rate up to 120 Hz; other rates configurable

TX frequency up to 150 kHz

Integrated DSP to process and filter data for faster scanning and lower noise

1.71 to 1.95 V and 3.0 to 5.5 V logic and digital I/Os supply

3.0 to 5.5 V analog supply

260 mW for 3-chip solution

174 mW for 2-chip solution

Sensor and system design (configuration-dependent)

Supports a variety of touchscreen sensors and stackups

Manhattan, diamond

Sensor-on-lens (SOL)

Plastic (PET) and glass-sensor substrates

LCD, AMOLED, and IPS displays

Metal mesh

Primary host communication interface

I2C slave rates at 100 kbps, 400 kbps, and 1 Mbps
