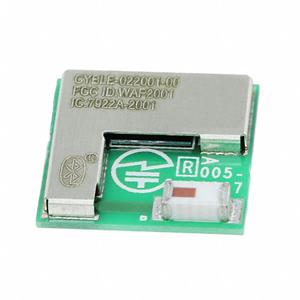

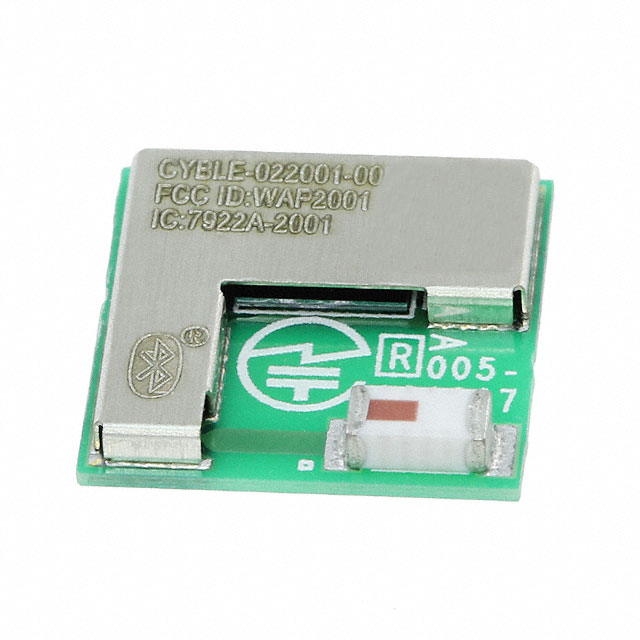

For picture reference, please see the specifications
< >

Commodity Model:CYBLE-022001-00

Trade Name:CYBLE-022001-00

Data Manual:CYBLE-022001-00.pdf

Brand:INFINEON

Particular Year:23+

Package:21-SMD Module

Delivery Date:New original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
CYBLE-022001-00
Package
21-SMD Module
Describe
Bluetooth v4.1 Transceiver Module 2.4GHz Integrated, Chip Surface Mount

Product Description

CYBLE-022001-00 is a fully certified and qualified module supporting Bluetooth Low Energy wireless communication. CYBLE-022001-00 is a turnkey solution and includes on-board crystal oscillators, chip antenna, passive components, and PSoC™ 4 Bluetooth LE.


Features

Industrial temperature range: –40°C to +85°C

32-bit processor (0.9 DMIPS/MHz) with single-cycle 32-bit multiply, operating at up to 48 MHz

128-KB flash memory, 16-KB SRAM memory

Watchdog timer with dedicated internal low-speed oscillator (ILO)

Two-pin SWD for programming

TX output power: –18 dbm to +3 dbm

Received signal strength indicator (RSSI) with 1-dB resolution

TX current consumption of 15.6 mA (radio only, 0 dbm)

RX current consumption of 16.4 mA (radio only)

12-bit, 1-Msps SAR ADC with internal reference, sample-and-hold (S/H), and channel sequencer

Two Serial Communication Blocks (SCBs) supporting I2C (master/slave), SPI (master/slave), or UART

Four dedicated 16-bit timer, counter, or PWM blocks (TCPWMs)

Programmable low voltage detect (LVD) from 1.8 V to 4.5 V
