Product Classification

AI Processor Chip

Resistor network

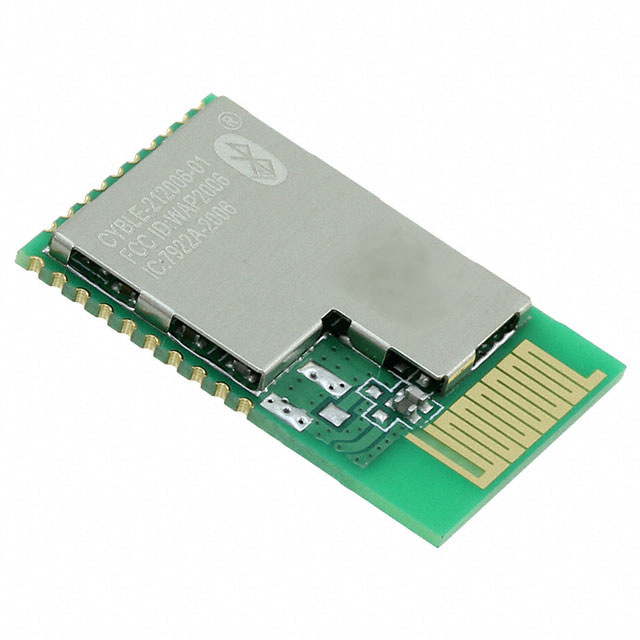

For picture reference, please see the specifications
< >

Commodity Model:CYBLE-212006-01

Trade Name:CYBLE-212006-01

Data Manual:CYBLE-212006-01.pdf

Brand:INFINEON

Particular Year:23+

Package:30-SMD Module

Delivery Date:New original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
CYBLE-212006-01
Package
30-SMD Module
Describe
Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Trace Surface Mount

Product Description

CYBLE-212006-01 is a Bluetooth Low Energy wireless module solution. CYBLE-212006-01 is a turnkey solution and includes onboard crystal oscillators, passive components,and the PSoC 4 Bluetooth LE.


Features

Castelated solder pad connections for ease-of-use

256-KB flash memory, 32-KB SRAM memory

Up to 19 GPIOs

Industrial temperature range: –40 °C to +85 °C

32-bit processor (0.9 DMIPS/MHz) operating up to 48 MHz

Watchdog timer with dedicated internal low-speed oscillator

Maximum TX output power: +7.5 dbm

RX Receive Sensitivity: –93 dbm

Received signal strength indicator (RSSI) with 1-dB resolution

Up to 18 capacitive sensors for buttons or sliders

Switches between Central and Peripheral roles on-the-go

Standard Bluetooth LE profiles and services for interoperability

Custom profile and service for specific use cases

Proven hardware design ready to use

Cost optimized for applications without space constraint

Reprogrammable architecture

Bluetooth SIG qualified with QDID and Declaration ID

Flexible communication protocol support
