BlueNRG-LPS is an ultra-low power programmable Bluetooth® Low Energy wireless SoC solution. It is embedded with ST's advanced 2.4GHz wireless IP, optimized for low power consumption and excellent wireless performance, leading the competition in terms of battery life. It complies with the Bluetooth® Low Energy SIG Core Specification version 5.3 and supports point-to-point connectivity and Bluetooth mesh networking, allowing for a reliable way to build a network of devices with wide coverage. BlueNRG-LPS is also suitable for 2.4GHz proprietary wireless communications, supporting ultra-low latency applications.

Device: BLUENRG-332VC

Type: TxRx + MCU

Rf Series/Standard: Bluetooth

Protocol: Bluetooth v5.3

Modulation: GFSK

Frequency: 2.4GHz ~ 2.48GHz

Data rate (Max.) : 32Mbps

Power - Output: 8dBm

Sensitivity: -104dBm

Storage capacity: 192kB flash, 1kB OTP, 24kB RAM, 7kB ROM

Serial interface: ADC, GPIO, I²C, I²S, JTAG, PCM, PWM, SPI, USART

GPIO: 20

Voltage - Power supply: 1.7V ~ 3.6V

Current - Reception: 3.4mA

Current - Transmission: 4.3mA

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

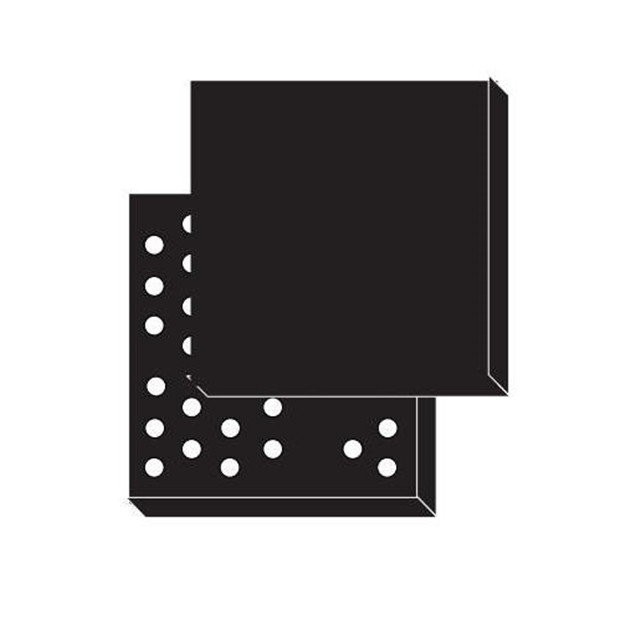

Package/housing: 36-XFBGA, WLCSP

Supplier Device Package: 36-WLCSP (2.65x 2.59)
