The BlueNRG-2N Bluetooth ® Low Power wireless networking coprocessor integrates the Arm® Cortex® M0 core, power management, clock, Bluetooth low power radio, random number generator (RNG), external microcontroller interface (SPI/UART), and public key encryption (PKA). The BlueNRG-2N is embedded in STM's most advanced RF radio IP with excellent performance and extremely long battery life, making it an ideal solution for Bluetooth low power applications.

Device: BLUENRG-234N

Type: TxRx + MCU

Rf Series/Standard: Bluetooth

Protocol: Bluetooth v5.0

Modulation: GFSK

Frequency: 2.4GHz ~ 2.4835GHz

Data rate (Max.) : 1Mbps

Power - Output: 8dBm

Sensitivity: -88dBm

Storage capacity: -

Serial interface: SPI, UART

GPIO: 14

Voltage - Power supply: 1.7V ~ 3.6V

Current - Reception: 7.7mA ~ 14.5mA

Current-transmission: 6.6mA ~ 28.8mA

Operating temperature: -40°C ~ 105°C

Mounting type: Surface mount type

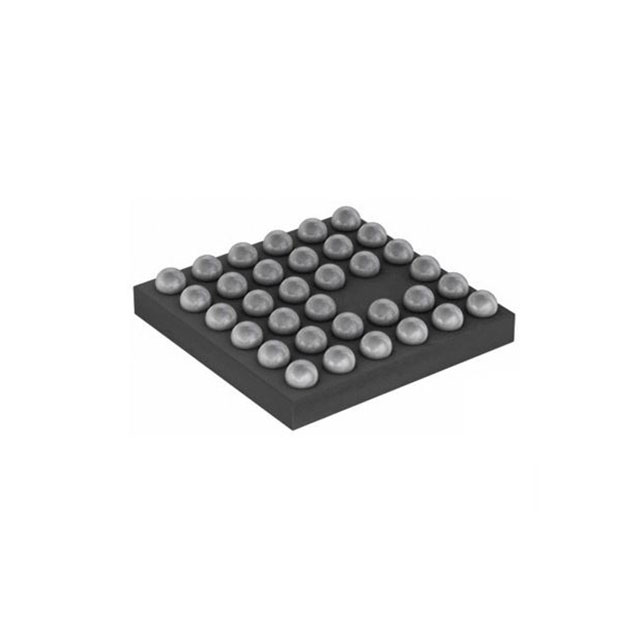

Package/housing: 34-XFBGA, WLCSP

Supplier Package: 34-WLCSP (2.66x2.56)

Basic product number: BLUENRG
