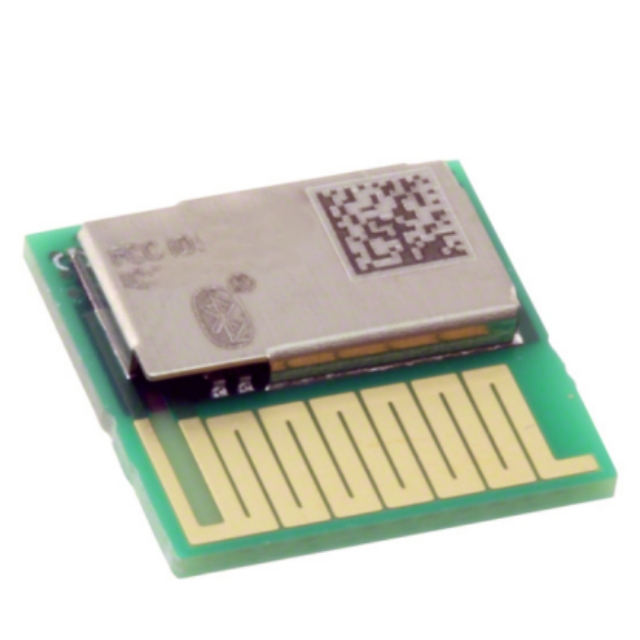

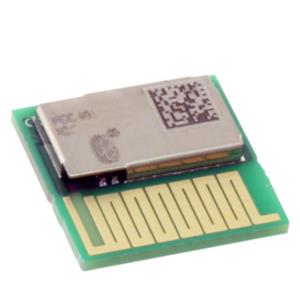

The CYBLE-214015-01 is a fully certified and qualified module supporting Bluetooth® Low Energy wireless communications. It is a turnkey solution that includes an on-board crystal oscillator, tracking antenna, passive components, and PSoC™ 4 Bluetooth® LE. The CYBLE-214015-01 is a scalable, reconfigurable platform architecture. It combines programmable, reconfigurable analogue and digital modules with flexible auto-routing. Its CYBLE-214015-01 also includes digital programmable logic, high-performance analogue-to-digital converters (ADCs), operational amplifiers with comparator mode, and standard communication and timing peripherals.

Product Attributes

RF Family/Standard: Bluetooth

Protocol: Bluetooth v4.2

Frequency: 2.4GHz ~ 2.5GHz

Data Rate: 1Mbps

Power - Output: 3dBm

Sensitivity: -91dBm

Serial Interface: I²C, SPI, UART

Antenna Type: Integrated, Tracking

Storage Capacity: 256kB Flash, 32kB SRAM

Voltage - Supply: 1.71V ~ 5.5V

Current - Receive: 16.4mA

Current - Transmit: 15.6mA

Mounting Type: Surface Mount

Operating Temperature: -40°C ~ 85°C

Package/Housing: 32-SMD Module
