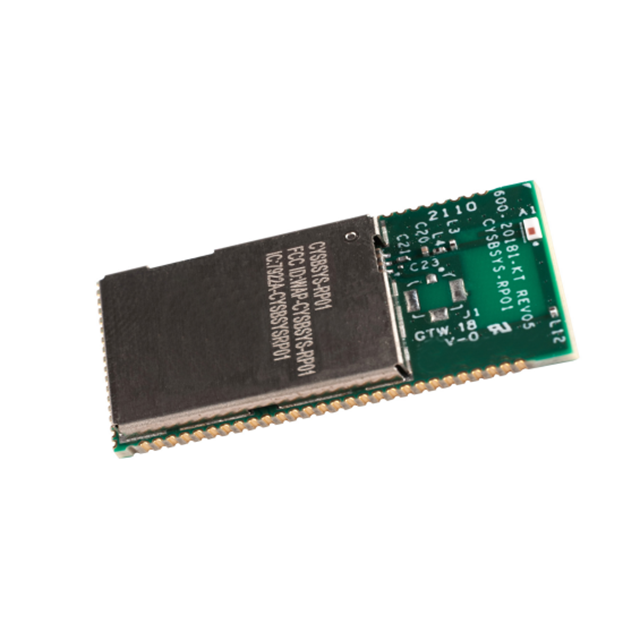

CYSBSYS-RP01 Rapid IoT Connect system on module is the easiest way to provide a secure, scalable, and reliable connection from device to cloud. CYSBSYS-RP01 is a precertified 802.11ac-friendly dual-band Wi-Fi and Bluetooth® 5.0-compliant combo system-on module.

Features

Dual-core PSoC™ microcontroller

150-MHz Arm® Cortex®-M4F

100-MHz Cortex®-M0+

2048-KB Application flash

1024-KB SRAM

Wi-Fi and Bluetooth® 5.0 combo radio

Dual band 2.4 and 5 GHz support

Simultaneous Wi-Fi and Bluetooth® operation

801.11ac-friendly, MCS8 (256-QAM) for 20 MHz channels

Full IEEE 802.11 a/b/g/n compatibility

Bluetooth® 5.0-compliant

2 Mbps data rate for Bluetooth® Low Energy

On-board chip antenna

Certified to FCC, ISED and CE regulations

51 programmable GPIOS including thirteen 12-bit SAR ADCs, USB, UART, I2C, SPi,QSPI, PWM, I2S, PDM,capacitive sensing

73-pin 0.8 mm pitch castellated solder pads SMD package

Industrial temperature range: -20°C to 70°C

Size: 26.59 mm x 14 mm x 2.5 mm (L x W x H)

Weight: 2 gm

Pb-free, Halogen-free and RoHS-compliant
