Shenzhen Mingjiada Electronics supplies the new and original Silicon clock/timing SI5338J-B05506-GMR SI5338 clock generator, a large number of stock in stock, price advantage, if you have demand, welcome to contact Mr. Chen.

The SI5338 clock generator offers high performance and low jitter, with the ability to synthesize any frequency on each of the device's four output drivers. These timing ICs are capable of replacing up to four crystal oscillators of different frequencies or operating as frequency converters.The Si5338 clock generator features patented MultiSynth™ technology that allows the generation of four independent clocks with 0ppm accuracy.Each output clock can be independently configured to support a variety of signal formats and supply voltages. The devices are programmable via an I2C/SMBus compatible serial interface and support operation from 1.8, 2.5 or 3.3V core supplies.

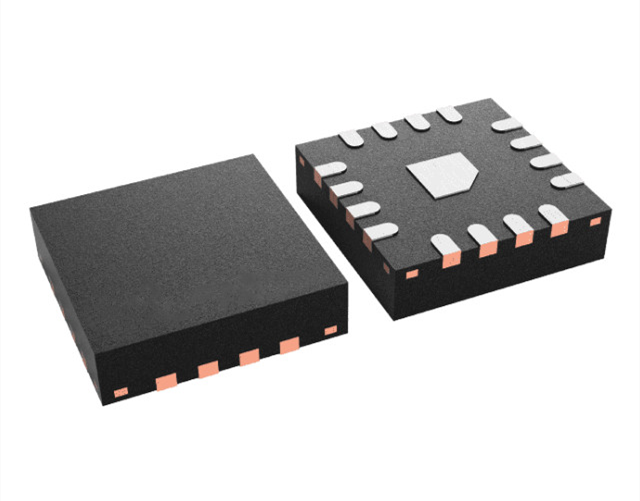

The SI5338 clock generator offers low jitter frequency synthesis in a compact 4mm x 4mm quad flat leadless package, ideal for space constrained applications.

Product Type: Clock Generators and Support Products

Model No: SI5338J-B05506-GMR

Lot Size: 17+

Series: Si5338

Type: Programmable Clock Generators

Maximum input frequency: 200 MHz

Maximum output frequency: 200 MHz

Number of outputs: 4 Outputs

Duty cycle - max: 60 %

Operating supply voltage: 1.8 V, 2.5 V, 3.3 V

Operating supply current: 45 mA

Minimum operating temperature: - 40 C

Max. operating temperature: + 85 C

Mounting style: SMD/SMT

Package: QFN24

Jump: 9 ps

Output type: CMOS

Product: Clock Generators

Product Type: Clock Generators

Factory Pack Quantity: 2500

Supply voltage - max: 3.63 V

Supply voltage - min: 1.71 V
