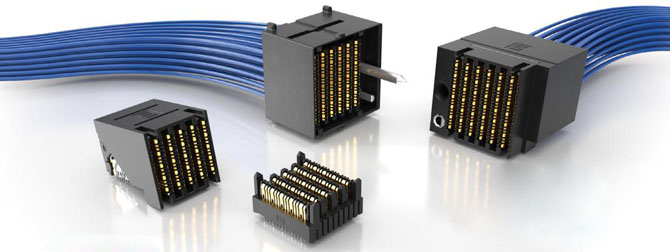

Shenzhen Mingjiada Electronics Co., Ltd. Supply [Samtec] EBTM-4-08-2.0-S-VT-1 (EBTM-4-10-2.0-S-VT-1) High-Speed Backplane Right-Angle Header

EBTM-4-08-2.0-S-VT-1: ExaMAX® 2.00 mm High-Speed Backplane Right-Angle Header, 64POS

Connector Usage: Backplane

Connector Type: Header, Male Blades

Connector Style: ExaMax®

Number of Positions: 64

Number of Positions Loaded: All

Pitch: 0.079" (2.00mm)

Number of Rows: 8

Number of Columns: 8

Mounting Type: Through Hole

Termination: Press-Fit

Features: Board Guide

Contact Finish: Gold

Contact Finish Thickness: 30.0µin (0.76µm)

Color: Black

Current Rating (Amps): 4.2A per Contact

Material Flammability Rating: UL94 V-0

Operating Temperature: -55°C ~ 105°C

Voltage Rating: 280VAC

EBTM-4-10-2.0-S-VT-1: ExaMAX® 2.00 mm High-Speed Backplane Right-Angle Header, 80POS

Connector Usage: Backplane

Connector Type: Header, Male Blades

Connector Style: ExaMax®

Number of Positions: 80

Number of Positions Loaded: All

Number of Columns: 10

Mounting Type: Through Hole

Termination: Press-Fit

Features: Board Guide

Contact Finish: Gold

Contact Finish Thickness: 30.0µin (0.76µm)

Color: Black

Current Rating (Amps): 4.2A

Operating Temperature: -55°C ~ 85°C

Supply [Samtec] Backplane Connectors:

EPTS-2-P-D-VT-01

EPTT-2-P-11.5-D-RA

EBTF-4-06-2.0-S-RA-1

EBTF-4-10-2.0-S-RA-1-L

EBTF-4-10-2.0-S-RA-1-L-B

EBTF-4-06-2.0-S-RA-1-L

EBTF-4-06-2.0-S-RA-1-R

EBTF-4-06-2.0-S-RA-1-R-A

EBTF-6-08-2.0-S-RA-1-L

EBTF-6-10-2.0-S-RA-1-L

EBTF-6-10-2.0-S-RA-1-R

EBTF-6-12-2.0-S-RA-1-L-G

EBTM-4-08-2.0-S-VT-1

EBTM-4-10-2.0-S-VT-1

EBTM-6-06-2.0-S-VT-1-L

EBTM-6-10-2.0-S-VT-1

EBTM-6-10-2.0-S-VT-1-L

EBTM-6-10-2.0-S-VT-1-R
