The CMD240C4 is an RF amplifier, DC to 22GHz, 24QFN

The CMD240C4 is an RF amplifier, DC to 22GHz, 24QFN

Source:our siteTime:2024-08-23Views:

Overview:Qorvos CMD240C4 is a wideband GaAs MMIC distributed amplifier in a pin-free 4x4mm table mount package. The amplifier operates in the frequency range DC to 22 GHz, providing gains of 15 dB or more with a corresponding noise figure of 2 dB and …

Overview:

Qorvo's CMD240C4 is a wideband GaAs MMIC distributed amplifier in a pin-free 4x4mm table mount package. The amplifier operates in the frequency range DC to 22 GHz, providing gains of 15 dB or more with a corresponding noise figure of 2 dB and an output 1 dB compression point of +19 dBm at 10 GHz. The CMD240C4 is a 50 ohm matching design and requires no RF port matching.


Features

Uwb performance

Low noise figure

Low current consumption

Excellent return loss


Applications

Electronic Countermeasures (EW)

Radar

Space technology

Satellite Communications (Satcom)

Test and measurement


Specification

CMD240C4:

Frequency range: DC to 22GHz

Gain: 15dB

Noise factor: 2dB

Output P1dB: 19dBm

Psat: 22dBm

Output IP3:27dBm

Input voltage range: 5V to 8V

Current: 80mA

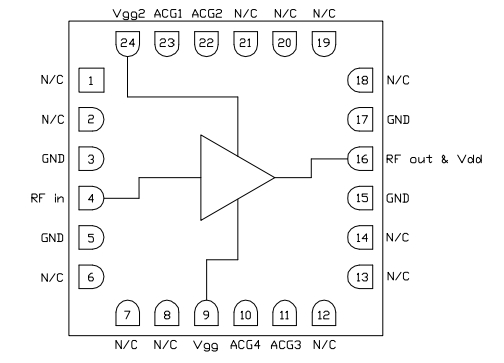

Functional block diagram
