Introduction (Renesas) ISL9238CHRTZ: Lift and narrow VDC charger with SMBus interface and USB-C OTG

Overview

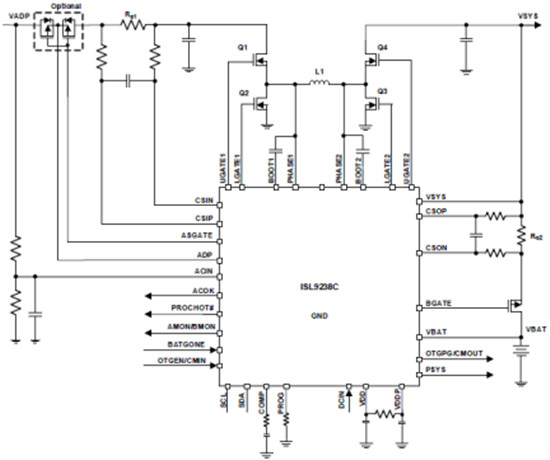

The ISL9238C is a buck-boost narrow output voltage Direct current (NVDC) charger. The ISL9238C provides NVDC charging, system bus conditioning and protection for tablets, ultrabooks, laptops, mobile power supplies and any USB-C interface platform. Advanced Renesas R3™ technology provides high light load efficiency and fast transient response. In charging mode, the ISL9238C accepts input power from a variety of DC power sources, such as traditional AC/DC charger adapters, USB PD ports, and travel adapters, and safely charges battery packs using up to four Li-ion batteries in series.

As an NVDC topological charger, the ISL9238C also adjusts the system output to a narrow DC range for a stable system bus voltage. System power can be provided by an adapter, battery, or a combination of both. The ISL9238C can run on battery only, with an adapter only, or with both connected. In order to comply with the Intel IMVP8 standard system, the ISL9238C has a PSSYS (System Power Monitor) function to provide an analog signal that represents the total platform power. PSYS outputs are connected to a variety of Renesas Electronics IMVP8 core regulators to provide IMVP8-compliant power domain functionality. The ISL9238C supports reverse buck, boost, or buck - boost operations for 2 to 4 battery input ports. The ISL9238C provides SMBus/I2C serial communication, allowing many key parameters to be programmed to provide custom solutions.

Features

Buck-boost NVDC chargers for 2, 3 or 4 Li-ion batteries

Input voltage range: 3.9V to 23.4V (no dead zone)

System output voltage: 2.4V to 18.304V

Autonomous charging option (automatic charging)

Forward through mode

System power monitor PSYS output, IMVP compliant

Switching frequency up to 1MHz

Adapter current and Battery current monitor (AMON/BMON)

PROCHOT# open drain output, in line with IMVP standards

Allows trickle charging of depleted batteries

Ideal diode control in Turbo mode

Battery reverse buck, boost and buck - boost operation

Secondary adapter current limits are provided

100% 2-FET buck mode only option

Battery transfer mode options

Compatible with SMBus and automatic incrementing I2C

4mm x 4mm 32 Ld TQFN package

UL2367, IEC 62368-1: File No. E520109

Applications

Tablets with 2 to 4 batteries

Ultrabook

notebook

Mobile power supply

Any USB-C portable device that requires batteries
