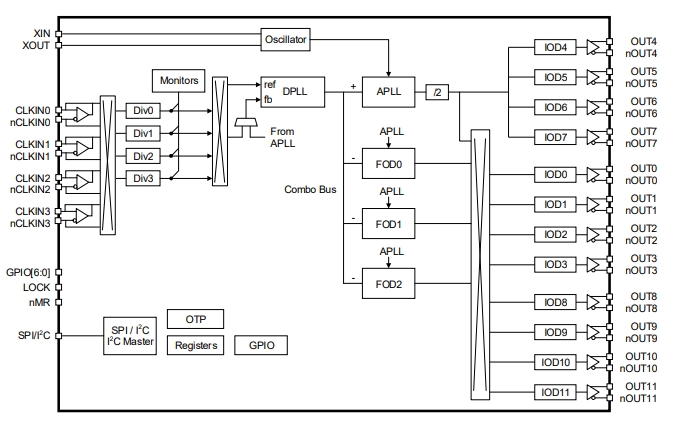

RC32312A002GN1 -- Renesas FemtoClock™ 3 Ultra low noise jitter attenuator and multi-frequency clock synthesizer


Product introduction

The RC32312A FemtoClock ™ clock synthesizer has industry-leading phase noise and jitter, making it ideal for SerDes rates up to 224Gbps. The RC323 series is highly integrated and supports up to four frequency domains while maintaining low power consumption. The FemtoClock 3 is versatile and can accommodate a variety of operating modes, such as synchronization, jitter attenuation, and clock generation. It has excellent 25fs-rms jitter, exceeding the reference clock requirements of 112Gbps and the next generation of 224Gbps SerDes. In addition, this series of synthesizers supports commonly used crystals in the frequency range of 48MHz to 68MHz, ensuring compliance with strict jitter specifications.


Features

The 25fs-rms jitter exceeds the reference clock requirements of 112Gbps SerDes and the next generation 224Gbps SerDes

Commonly used crystals with frequencies ranging from 48MHz to 68MHz meet strict jitter specifications

Up to 4 frequency domains allow all system clocks to be generated from a single device

An integrated LDO with superior power rejection ratio simplifies power supply design and reduces overall PCB complexity and area

Device models with jitter attenuation, synchronization, and clock generation are available with 8 or 12 outputs

With integrated non-volatile memory, customers can customize devices at the factory at no additional cost

Open source synchronization software and device drivers that support the Linux kernel for customer use to meet ESMC specifications


Applications

Wired infrastructure

Data center

Medical imaging
