Interface IC DS280BR810ZBFR DS280BR810 28Gbps Low Power 8-Channel Linear Redriver

Interface IC DS280BR810ZBFR DS280BR810 28Gbps Low Power 8-Channel Linear Redriver

Source:our siteTime:2022-11-25Views:

Mingjiada supply new and original interface IC DS280BR810ZBFR DS280BR810 28Gbps low power 8-channel linear redriver

Supply new and original interface IC DS280BR810ZBFR DS280BR810 28Gbps low power 8-channel linear redriver


Supplier: Mingjiada

Brand: TI

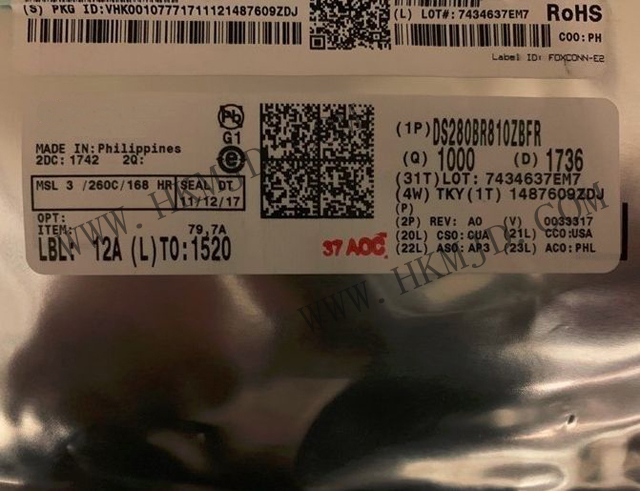

Model: DS280BR810ZBFR

Package: BGA

Year: 1736+


The DS280BR810 is an ultra-low-power, high-performance eight-channel linear equalizer that supports multi-rate, multi-protocol interfaces with data transfer rates up to 28Gbps. The device can be used to extend the length range and improve the robustness of high-speed serial links for front-port, backplane, and chip-to-chip applications.


Specification

Type Buffer, Redriver

Application -

Enter CML

output CML

Data rate (max) 28Gbps

Number of channels 8

delay -

Signal Conditioning -

Voltage - Power 2.5V

Current - Power -

Operating temperature -40°C ~ 85°C

Mounting Type Surface Mount

Package/Case 135-LFBGA

Vendor Device Package 135-NFBGA (13x8)


Application

Backboard/Midboard Length Extension

Front Port Eye Opener for Optical Copper and Passive Copper (100G-SR4/LR4/CR4)


The real order has an acceptance price for detailed discussion, please contact us:

Email: sales@hkmjd.com
