Murata has developed a new low-loss multi-layer ceramic capacitor (MLCC), which supports a rated voltage of 100V and has an ultra-small size of 0402M (0.4 x 0.2mm), mainly for wireless communication modules, and will begin mass production in February 2024.

In recent years, with the popularity of 5G, MIMO(multiple-input and multiple-output, a technology that uses Multiple transmitting and receiving antennas to improve communication speed) has been gradually introduced to achieve the high-speed, large-capacity communication, multi-connection and low-latency characteristics of 5G. However, because it requires multiple devices to send and receive signals, the modular demand for wireless communication circuits is increasing. As a result, the installation space for components is becoming smaller and smaller, so the demand for small components is expected to increase further.

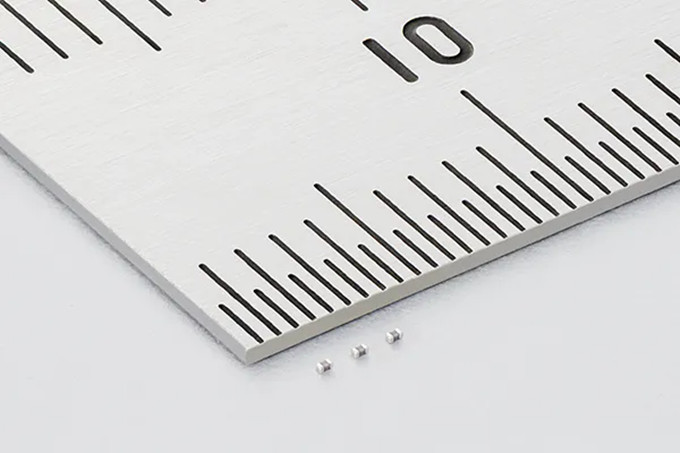

In this regard, by using thin layer forming technology based on the particularization and homogenization of ceramics and electrode materials and high-precision lamination technology, Murata has developed an ultra-small low-loss chip multi-layer ceramic capacitor with a size of 0.4mm×0.2mm, which can ensure the operation at 150 ° C and a rated voltage of 100V. Compared to Murata's previous product (0603M size), the miniaturization is successfully achieved, reducing the mounting area by about 35% and the volume by about 55%. It contributes to the miniaturization of wireless communication module. In addition, product miniaturization also helps to reduce the material and energy consumption in the production process.

Main feature

1. Take the lead to achieve 0402M ultra-small size of high voltage characteristics (100V);

2. Very suitable for application scenarios that need to reduce the installation space of components, helping to reduce the size of RF modules;

3. It can ensure that it works at 150 ° C, so it can be mounted closer to the power semiconductor;

4. HiQ and low ESR are realized in VHF, UHF, microwave and higher frequency bands;

5. Can cope with narrow capacity deviation.

Main specification

Product Name: GJM022(5G,5C)2A(R20-220)

Size (L×W×T) : 0.4mm×0.2mm×0.2mm

Electrostatic capacity: 0.2pF ~ 22pF

Temperature characteristics: X8G characteristics (MURATA),C0G characteristics (EIA)

Operating temperature range: X8G Feature: -55 ~ 150°C, 5C feature: -55 ~ 125°C

Rated voltage: 100Vdc

About Murata

Murata Manufacturing Co., Ltd. is a global leader in the design, manufacture and sale of ceramic based passive electronic components and solutions, communication modules and power modules. Murata is committed to the development of advanced electronic materials as well as leading multi-functional and high-density modules.
