Toshiba introduces new 2:1 multiplexer/1:2 demultiplexer switch

Toshiba introduces new 2:1 multiplexer/1:2 demultiplexer switch

Source:our siteTime:2024-07-11Views:

Toshiba Electronic Components and Storage Corporation (" Toshiba ") today announced the launch of the new Mux/De-Mux switch "TDS4A212MX" and the "TDS4B212MX" multiplexer/demultiplexer (Mux/De-Mux) switch. The new product …

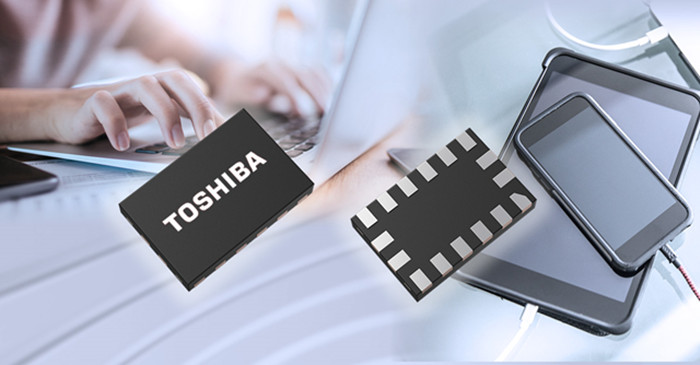

Toshiba Electronic Components and Storage Corporation (" Toshiba ") today announced the launch of the new Mux/De-Mux switch "TDS4A212MX" and the "TDS4B212MX" multiplexer/demultiplexer (Mux/De-Mux) switch. The new product can be used as a 2-input-1-output Mux switch and a 1-input-2-output De-Mux switch for high-speed differential signal applications such as PCIe®5.0, USB4® and USB4® Ver-2 for PCS, server devices, mobile devices, etc.


Using Toshiba's proprietary SOI process (TarfSOI™), the new products achieve very high bandwidth: the TDS4B212MX has a bandwidth of 3 dB (differential) of 27.5 GHz (typical) and the TDS4A212MX has a bandwidth of 26.2 GHz (typical), leading the industry [1]. Therefore, the new product can be used as a Mux/De-Mux switch for high-speed differential signals such as PCIe®5.0, USB4® and USB4®Ver.2.


The TDS4B212MX and TDS4A212MX have different pin assignments. The pin allocation of the TDS4B212MX is optimized for high frequency characteristics. The TDS4A212MX's pin allocation considerations help with compatible board layouts.


Applications:

- PCS, server devices, mobile devices, wearable devices, etc.

Supported interfaces: PCIe®5.0, PCIe®4.0, PCIe®3.0, CXL2.0, CXL1.0, USB4®Ver.2, USB4®, USB3.2 Gen2×1, USB3.2 Gen1×1, Thunderbolt™4, Thunderbolt™3, Thunderbolt™2, DisplayPort™2.0, DisplayPort™1.4, DisplayPort™1.3, DisplayPort™1.2


Features:

- High -3 dB bandwidth (differential) for high-speed differential signals such as PCIe®5.0 and USB4®

TDS4B212MX: -3 dB bandwidth (differential) = 27.5 GHz (typical)

TDS4A212MX: -3 dB bandwidth (differential) = 26.2 GHz (typical)

- Low current consumption: Iope = 150 μA (Max)

- Small package: XQFN16 (2.4MMI 1.6mm (typical value), thickness = 0.4mm (maximum))


For more information, please contact https://toshiba-semicon-storage.com/
