Supply Original [ST] STM32L451VET6——80MHz, 32-Bit Arm® Cortex®-M4 Microcontroller MCU

Shenzhen Mingjiada Electronics Co., Ltd. — Stock supply of ST (STM32L451VET6) ultra-low power 80MHz Arm Cortex-M4 microcontroller MCU with FPU, featuring 512KB Flash memory and DFSDM.

Product Details:

Model: STM32L451VET6

Package: LQFP-100

Type: 32-bit Microcontroller - MCU

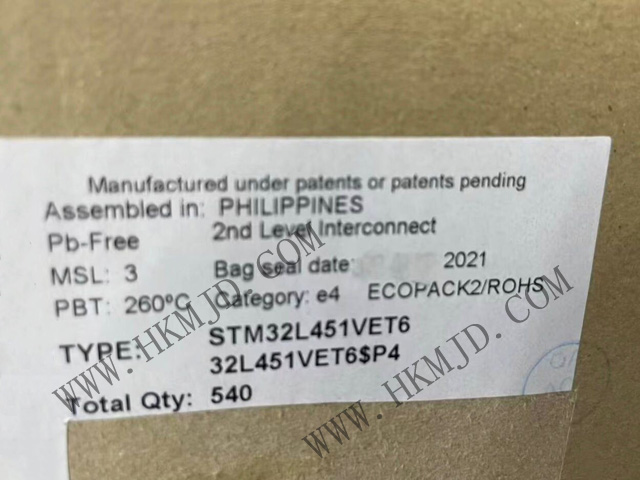

STM32L451VET6 — Product Image:

The STM32L451VET6 is an ultra-low-power microcontroller based on the high-performance Arm® Cortex®-M4 32-bit RISC core, operating at up to 80 MHz. The Cortex-M4 core incorporates a single-precision floating-point unit (FPU), supporting all Arm® single-precision data processing instructions and data types.

The STM32L451VET6 incorporates high-speed memory (up to 512 Kbyte flash and 160 Kbyte SRAM), a Quad SPI flash interface (available in all packages), and a large number of enhanced I/O and peripherals connected to two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix.

STM32L451VET6 Product Features:

Core: Arm® 32-bit Cortex®-M4 CPU with Floating-Point Unit (FPU), featuring Adaptive Real-Time Accelerator™ (ART™) for zero-wait-state execution from flash, operating at up to 80 MHz, incorporating MPU, delivering 100 DMIPS and DSP instruction set

Ultra-low power with FlexPowerControl technology

– Supply voltage: 1.71 V to 3.6 V

– Operating temperature range: -40 °C to 85/125 °C

– VBAT mode power consumption: 145 nA (powering RTC and 32×32-bit backup registers)

– Shutdown mode power consumption: 22 nA (including 5 wake-up pins)

– Standby mode power consumption: 106 nA (including 5 wake-up pins)

– Standby mode with RTC: 375 nA

– Stop 2 mode: 2.05 µA (2.40 µA with RTC)

– Run mode: 84 µA/MHz

– Batch Acquisition Mode (BAM)

– Stop Mode Wake-up Time: 4 µs

– Voltage Sink Reset (BOR)

STM32L451VET6 – Circuit Schematic:

【Mingjiada Electronics】Stock supply of ST (STM32L451VET6) high-performance Arm® Cortex®-M4 32-bit microcontroller MCUs. For further product information regarding the STM32L451VET6 MCU, please contact Mingjiada Electronics:
