Power Management Chip VIPER318HDTR — ST Energy-Efficient Offline High-Voltage Converter

Power Management Chip VIPER318HDTR — ST Energy-Efficient Offline High-Voltage Converter

Source:our siteTime:2025-08-04Views:

Shenzhen Mingjiada Electronics Co., Ltd. offers the VIPER318HDTR in stock. This is a highly integrated, low-power offline high-voltage converter developed by STMicroelectronics, suitable for various power management applications.VIPER318HDTR Descripti…

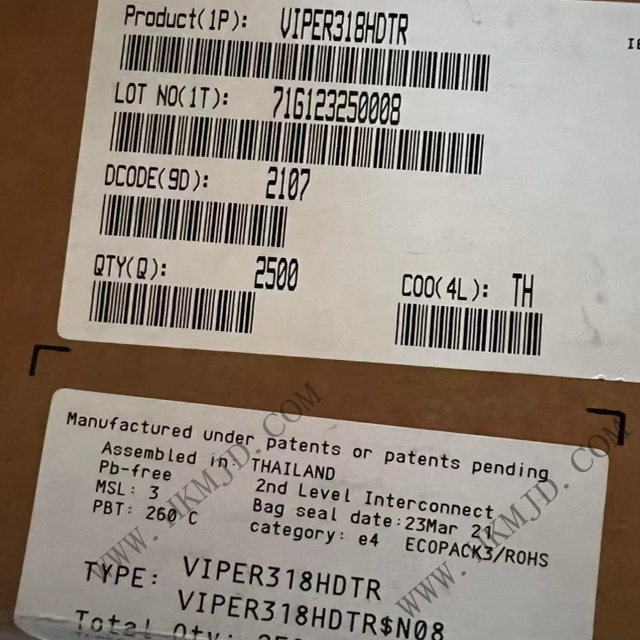

Shenzhen Mingjiada Electronics Co., Ltd. offers the VIPER318HDTR in stock. This is a highly integrated, low-power offline high-voltage converter developed by STMicroelectronics, suitable for various power management applications.


VIPER318HDTR Description

The VIPER318HDTR is an energy-efficient offline high-voltage converter that integrates an 800V avalanche-resistant power MOSFET and a PWM current-mode controller, suitable for various topologies such as flyback, buck, and buck-boost. The chip is packaged in a 16-SOIC package, featuring ultra-low standby power consumption (20mW @265V) and a wide input voltage range (4.5V to 30V), making it suitable for applications in home appliances, industrial control, smart home systems, lighting systems, and other fields.


VIPER318HDTR Features

800V avalanche-resistant power MOSFET, covering an ultra-wide VAC input range

Integrated high-voltage startup and sensing FET

Current-mode PWM controller

Drain current limit protection (OCP):

710 mA (VIPER317)

850 mA (VIPER318)

990 mA (VIPER319)

Wide power supply voltage range: 4.5 V to 30 V

No load, < 20 mW at 230 VAC;

250 mW output load, < 430 mW at 230 VAC

Switching frequency jitter reduces EMI filter costs:

30 kHz ± 7% (X-type)

60 kHz ± 7% (L-type)

132 kHz ± 7% (H-type)

Integrated 1.2 V reference error amplifier

Built-in soft start for improved system reliability

Protection features with automatic restart support:

Overload/short circuit (OLP)

Thermal protection

Overvoltage

Protection features without automatic restart support:

Pulse jump protection to prevent flux runaway

Undervoltage/disable

Maximum duty cycle


VIPER318HDTR Applications

Home appliance power management (air conditioners, washing machines, refrigerators)

Smart home (gateways, sensor power supply)

Industrial control (PLCs, motor drives)

LED lighting drivers

Low-power adapters


VIPER318HDTR Parameters

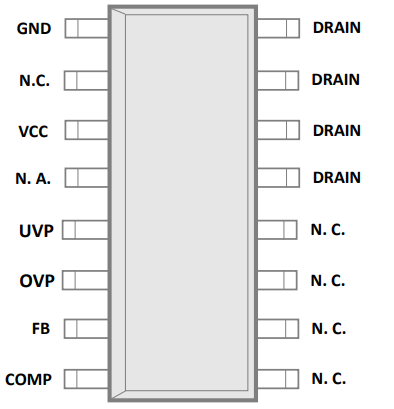

Package/Case: SOIC-16

Topology: Buck, Buck-Boost, Flyback

Output Voltage: 15 V

Output Current: 850 mA

Number of Outputs: 1 Output

Input Voltage - Minimum: 4.5 V

Input Voltage - Maximum: 30 V

Quiescent Current: 480 uA

Switching Frequency: 132 kHz

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +150°C

Series:    VIPER31

Operating Power Supply Current:    2.25 mA


For purchasing inquiries, please contact Mingjiada Electronics:

Phone: +86 13410018555

Email: sales@hkmjd.com

Website: www.hkmjd.com


Shenzhen Mingjiada Electronics Co., Ltd., as a professional electronic component supplier, offers the VIPER318HDTR in stock, enabling us to quickly meet your procurement needs. We provide genuine factory products to ensure product quality and performance.
