Designed for high reliability systems, the LTC4421CG Priority PowerPath controller is introduced

Source:our siteTime:2024-05-11Views:

Product Overview:ADI Based on user-defined priority and effectiveness, the LTC4421 Priority PowerPath controller is designed to drive an external N-channel mosfet to connect one of two input power supplies to a common output. By definition, the power …

Product Overview:

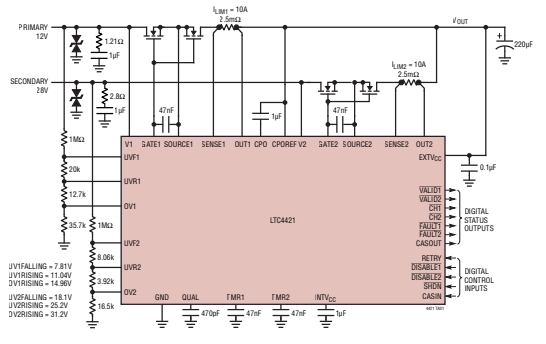

ADI Based on user-defined priority and effectiveness, the LTC4421 Priority PowerPath controller is designed to drive an external N-channel mosfet to connect one of two input power supplies to a common output. By definition, the power supply connected to V1 is the higher priority power supply, although this can change dynamically. External resistance divider sets undervoltage and overvoltage thresholds to limit the effective voltage window.

Powerful gate driver quickly switches large external N-channel MOSFETs. Fast switching circuits minimize output drops while changing channels, while preventing reverse and cross conduction. A fast comparator detects input short circuits and quickly turns off the N-channel MOSFETs to minimize interruptions.

External induction resistors set maximum inrush current and limit current. During current limiting, the LTC4421 controls the N-channel MOSFET gate to regulate 25mV across the inductive resistance. When the induction resistor voltage has been adjusted to 25mV for a user-configurable time, the channel is disconnected and a fault is set.

Product features:

Wide operating voltage range: 0V to 36V (withstand 60V)

Drives large external n-channel MOSFETs for high output current applications

Precisely limit the influx current

Connect the highest priority active power supply to the output load

Change channel priorities in real time

±2% OV, UV input comparator

The current limiting time can be adjusted individually for each channel

Adjustable input validation time

Fast switching minimizes VOUT pressure drop

Operating ambient temperature range

LTC4421C: 0°C to +70°C
