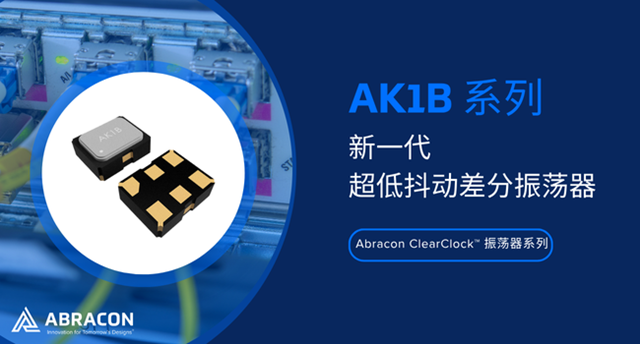

Abracon's brand-new AK1B series ClearClock™ oscillators deliver outstanding performance in an ultra-compact 2.0× 1.6mm package, providing industry-leading precision for high-speed systems.

This oscillator offers two frequency options: 100MHz or 156.25MHz. At 156.25MHz, the RMS jitter can be as low as 34.2 femtoseconds, and at 100MHz, it is only 54.4 femtoseconds, ensuring a pure clock signal for various application scenarios.

The AK1B series is designed for diverse applications, supporting LVPECL, LVDS and HCSL outputs, with an operating voltage range of 1.8V to 3.63V, providing engineers with greater flexibility when matching different system requirements.

Its operating temperature range is as wide as -40°C to +105°C, and it features excellent frequency stability (±50ppm), which is sufficient to adapt to various environments such as data centers, optical communications, PCIe and networks.

ClearClock™ Ultra-Low Jitter Differential Oscillator

Abracon's new generation of ClearClock™ series products have added AK1B, AK2B and AK3B differential output crystal oscillators, aiming to provide outstanding signal integrity in high-speed data environments. These products from Abracon feature ultra-low RMS jitter. At a frequency of 156.25MHz, the AK1B jitter is as low as 35 femtoseconds, and the AK2B/AK3B can be as low as 54 femtoseconds, ensuring a stable clock signal required for data transmission and processing. The AK1B features an ultra-compact 2.0x1.6mm package, making it highly suitable for space-constrained application scenarios such as optical transceivers and optical modules. AK2B/AK3B offer industry-standard sizes to achieve broader system compatibility. All models support LVPECL, LVDS and HCSL output, and offer flexible voltage options for seamless integration into telecommunications, industrial and network systems. The operating temperature range of the ClearClock™ series has been expanded to a maximum of +105°C, and it has been optimized in terms of performance, accuracy and versatility.

1. Product Advantages

Ultra-low jitter performance

- Compact and space-saving design

- Wide voltage flexibility

- Industry standard output compatibility

- Supports wide temperature operation

2 Product Features

- Package sizes: 2016, 2520, 3225

- Phase jitter: as low as 35 femtoseconds

- Wide operating temperature range: -40°C to +105°C

- Frequency stability: Up to ±20ppm

3 Application Scenarios

Optical transceivers and optical modules

Data centers, storage devices and servers

- Network switches and gateways

-100G /200G/400G/800G Ethernet

Fiber Channel /SONET/SDH/PCIe
