The LT3066EDE is a 45V VIN, 500mA low-noise, linear regulator with programmable current limits and active output discharge function launched by (ADI). The following is a detailed introduction to the LT3066EDE

The LT3066EDE is a low-power, low-noise, low-dropout voltage (LDO) linear regulator that operates within an input voltage range of 1.8V to 45V. In addition, the LT3066EDE can provide an output current of 500mA and a typical differential voltage of 300mV. A single external capacitor provides programmable low-noise benchmark performance and output soft-start functionality.

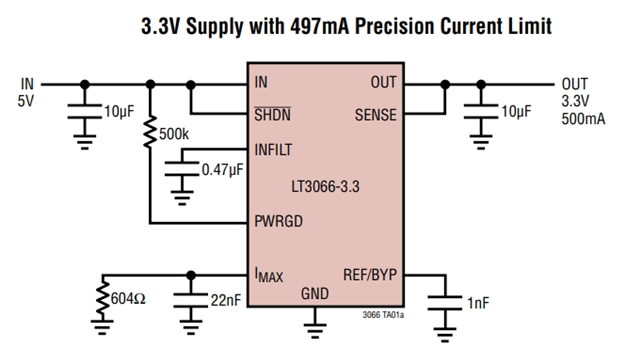

The LT3066EDE uses a single resistor to set the current limit of the LT3066 and can achieve an accuracy of ±10% over a wide range of input voltages and temperatures. A PWRGD tag is used to indicate output regulation.

The LT3066EDE features a pull-down NMOS, which is responsible for discharging the output when the SHDN or IN is driven to a low level.

The LT3066EDE optimizes stability and transient response by using low ESR ceramic capacitors, with a minimum required capacitance of 3.3μF. The internal protection circuit includes current limit with return, thermal limit, reverse battery protection, reverse current protection and reverse output protection.

The LT3066EDE features available fixed output voltages of 3.3V and 5V, and can be used as an adjustable device with an output voltage range of 0.6V to 19V. This device features a heat-resistant performance enhanced 12-pin 4mm x 3mm DFN and MSOP package.

Its main features include:

Input voltage range: 1.8V to 45V

Output current: 500mA

Active output discharge

Differential pressure voltage: 300mV

Programmable precise current limit: ±10%

Good marking of power supply

Input filtering is used to achieve high PSRR

Low noise: 25μVRMS (10Hz to 100kHz)

Adjustable output (VREF = VOUT(MIN) = 600mV)

Output tolerance: ±2% (across the entire voltage, load and temperature range)

It can remain stable when low ESR ceramic output capacitors (with a minimum capacitance value of 3.3μF) are used

A single capacitor is used to achieve a soft start for the reference and reduce output noise

Return current limit protection

Shutdown current: <3μA

Reverse battery and thermal limit protection

12-pin 4mm x 3mm DFN package

Application scenarios

The LT3066EDE achieves voltage regulation and start-up control through a single external capacitor, making it suitable for scenarios with high requirements for power consumption and stability. It mainly includes

Battery-powered system

Automobile power supply

Industrial power supply

Avionics power supply

Portable instrument
