[Supply] NCV7720DQAR2G (ON) Ten-Channel, Deca Half-Bridge Driver, SSOP-24

Shenzhen Mingjiada Electronics Co., Ltd.——Long-term supply of Onsemi (NCV7720DQAR2G) Deca 10-way half-bridge drivers with protection features specifically designed for automotive and industrial motion control applications.

Product Details:

Model: NCV7720DQAR2G

Package: SSOP-24

Type: Deca Half Bridge Driver

Product Diagram:

The NCV7720DQAR2G has separate controls and diagnostics, and the driver can operate in forward, reverse, braked, and high impedance states. The device is controlled via a 16-bit SPI interface and is daisy-chain compatible.

NCV7720DQAR2G Key Parameter Information

Function: Driver - Fully Integrated, Control and Power Stage

Output Configuration: Half Bridge (10)

Interface: SPI

Technology: Power MOSFET

Application: General Purpose

Current - Output: 550mA

Voltage - Supply: 3.15V ~ 5.25V

Voltage - Load: 5.5V ~ 28V

Operating Temperature: -40°C ~ 150°C (TJ) )

Mounting Type: Surface Mount

Package/Case: 24-LSSOP (0.154", 3.90mm Width)

Key Features of the NCV7720DQAR2G

Low quiescent current sleep mode

HV-side and LV-side drivers connected in a half-bridge configuration

Integrated Continuity Protection (LS and HS)

0.55 A peak current

RDS(on) = 1 ohm (typ)

5 MHz SPI control

Compliant with 5 V and 3.3 V system under- and over-voltage lockout Over-current protection Over-temperature protection Under-load detection Discriminative fault reporting 16-bit frame detection daisy-chain compatible with multiple 8.3 V systems

Undervoltage and overvoltage lockout

Overcurrent protection

Overtemperature protection

Underload detection

Discriminating fault report

16-bit frame detection

Daisy-chain compatible with multiple 8-bit devices

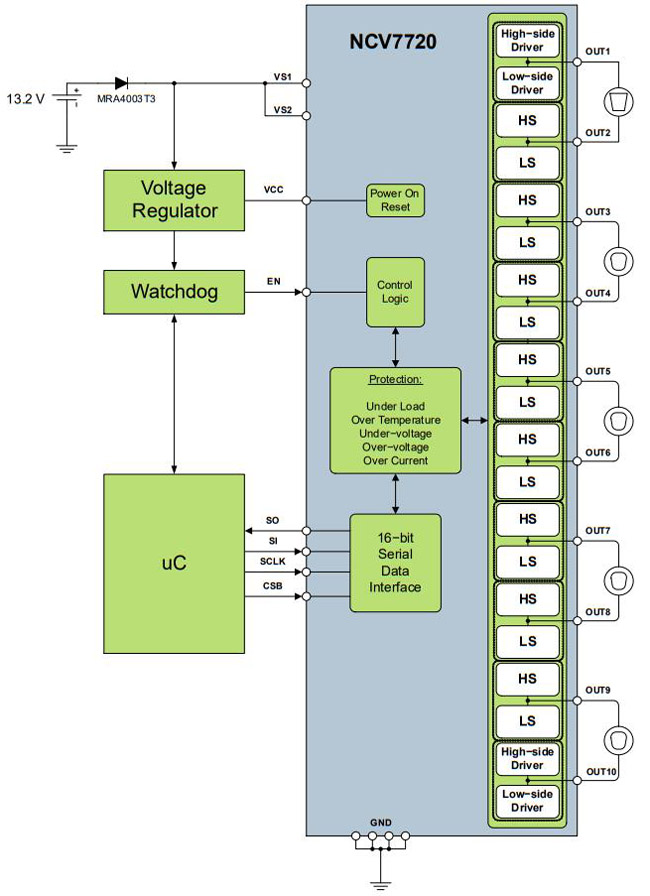

NCV7720DQAR2G - Typical Application Block Diagrams
