1. Details

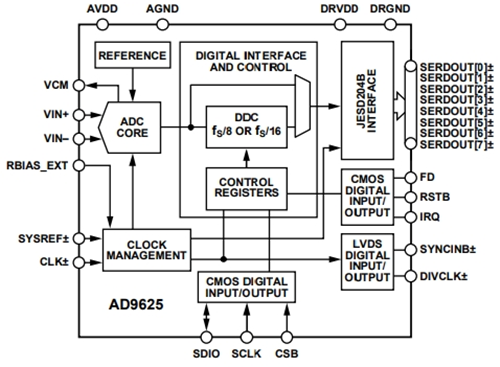

The AD9625BBPZ-2.5 is a 12-bit single-chip sampling analog-to-digital converter (ADC), which can operate at a conversion rate of up to 2.5 gigabits per second (GSPS). This product is used for sampling broadband analog signals up to the second Nyquist region. The AD9625BBPZ-2.5 combines a wide input bandwidth, high sampling rate and excellent linearity. It is highly suitable for spectrum analyzers, data acquisition systems and various military electronic applications, such as radar and interference/anti-jamming measurements.

The analog input, clock and SYSREF signal are all differential inputs. The AD9625BBPZ-2.5, based on the JESD204B high-speed serial output, can be configured in 1, 2, 4, 6 or 8-channel configurations.

Product advantages

1. High performance: The AD9625BBPZ-2.5 offers outstanding SFDR applications at high sampling rates, direct RF sampling, and an on-chip reference voltage source.

2. Flexible digital data output format, AD9625BBPZ-2.5 is based on the JESD204B specification.

3. Control path SPI interface port, AD9625BBPZ-2.5 supports various product features and functions, such as data format, gain and offset calibration values.

Technical Specification

The main specifications of AD9625BBPZ-2.5 include:

Resolution: 12 bits

Number of channels: 1 Channel

Interface type: Serial

Sampling ratio: 2.5 GS/s

Input type: Differential

Structure: Pipeline

Analog power supply voltage: 1.3V, 2.5V

Digital power supply voltage: 1.3V, 2.5V

SNR - Signal-to-Noise Ratio: 58.3 dB

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Package/Box: BGA-196

Application field

AD9625BBPZ-2.5 is widely used in the following fields:

Spectrum analyzer

Military communication

Radar

High-performance data storage oscilloscope

Active interference/anti-interference

Electronic monitoring and confrontation

Furthermore, AD9625BBPZ-2.5 also has the following main features:

12-bit, 2.5GSPS no-loss ADC

SFDR = 79 dBc, the maximum AIN is 1 GHz (-1 dBFS, 2.5 GSPS)

SFDR = 77 dBc, the maximum AIN is 1.8 GHz (-1 dBFS, 2.5 GSPS)

SNR = 57.6 dBFS, and the maximum AIN is 1 GHz (-1 dBFS, 2.5 GSPS)

SNR = 57 dBFS, the maximum AIN is 1.8 GHz (-1 dBFS, 2.5 GSPS)

Noise spectral density = -149.5 dBFS/Hz (2.5 GSPS)

Differential simulation input: 1.2 V p-p

Differential clock input

3.2GHz full-power analog input bandwidth

High-speed 6 or 8-channel JESD204B serial output

Subclass 1:6.50 Gbps (2.6 GSPS)

Two independent 1/8 or 1/16 extraction filters using 10-bit NCO

Power supply voltage: 1.3V, 2.5V

Flexible digital output mode

Built-in optional digital test codes

Timestamp feature

The conversion bit error rate is less than 10−15
