[Supply] ADUM3402ARWZ (ADI) Quad-Channel Digital Isolator

Shenzhen Mingjiada Electronics Co., Ltd.——Long-term supply of ADI (ADUM3402ARWZ) four-channel digital isolator, can be used 2.7 V to 5.5 V supply voltage operation, compatible with low-voltage systems, and can be across the barrier to achieve the voltage conversion function.

ADI's ADUM3402ARWZ quad-channel digital isolator is ideal for engineers tackling high-noise challenges with its magnetic coupling technology and enhanced system-level ESD reliability.

Product details:

Model: ADUM3402ARWZ

Package: SOIC-16

Type: Digital Isolator

ADUM3402ARWZ Core Benefits Explained

Robust Magnetic Isolation Barrier (iCoupler® Technology)

- Using advanced magnetic inductive coupling technology, completely abandon the traditional optocoupler LED aging problems, longer life, higher stability.

- 2500Vrms high isolation voltage provides strong safety protection and meets stringent electrical safety standards (e.g. UL, CSA, VDE).

- Excellent anti-interference capability: Common-mode transient immunity (CMTI) of 25kV/µs minimum ensures accurate signal transmission in strong noise environments (e.g., motor drive, power conversion) and avoids false triggering.

Enhanced system-level ESD reliability

- Designed to withstand real-world electrostatic shock, it significantly improves the robustness and long-term reliability of the entire system and reduces the field failure rate.

Flexible and efficient four-channel configuration

- 2/2 channel directional assignment (side 1:2 inputs, side 2:2 inputs) Provides design flexibility for bi-directional communications or centralised isolation requirements.

- Unidirectional channel design simplifies interface logic and ensures clear signal flow.

- 1Mbps data rate Meets most medium-speed transmission requirements for control signals, sensor data, status feedback, etc.

Accurate and Fast Signal Transmission

- Maximum propagation delay of 100ns (tpLH/tpHL) and maximum pulse width distortion of 40ns ensure signal timing accuracy.

- Typical rise/fall time of 2.5ns ensures steep and clear signal edges for improved signal quality.

Wide Adaptability and Ease of Integration

- Wide 3V to 5.5V supply voltage range for easy compatibility with 3.3V and 5V systems, simplifying power supply design.

- Industrial-grade temperature range (-40°C ~ +105°C) for extreme operating environments.

- Standard 16-SOIC package for easy automated placement, saving PCB space and speeding up mass production.

ADUM3402ARWZ Typical Application Scenarios

Industrial communication interface isolation: isolation protection for RS-485/422, CAN, SPI, I²C and other buses.

Programmable Logic Controller (PLC) I/O modules: Isolation of digital input/output channels.

Motor drive control: Isolation of PWM signals, fault feedback signals.

Switch-mode power supplies (SMPS): isolate feedback signals and drive signals.

Medical equipment: Signal transmission to meet safety isolation requirements.

Level conversion and isolation between general-purpose systems.

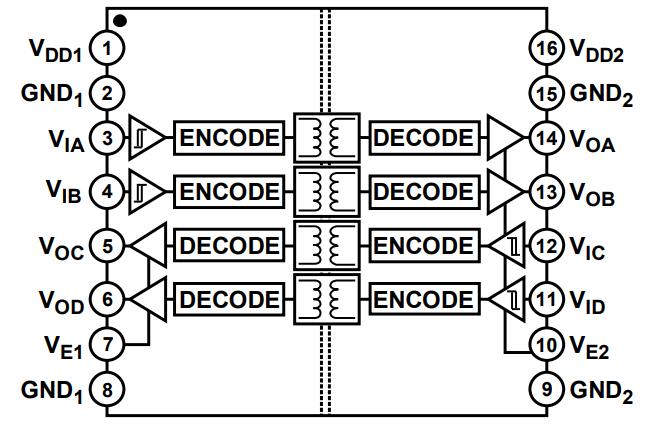

ADUM3402ARWZ - Functional Block Diagram:

[Mingjiada Electronics] Long-term supply of ADI (ADUM3402ARWZ) four-channel digital isolators with enhanced system-level ESD reliability, for more product information about ADUM3402ARWZ or to purchase samples, welcome to visit the official website of Mingjiada Electronics (www.hkmjd.com) or contact customer service personnel to inquire about prices.
