The DAC80508ZRTER is a 16-bit, 8-channel, SPI, voltage output DAC with a precise internal reference voltage.

1. Characteristics

The DAC80508ZRTER has the following main features:

Performance

-INL: ±1LSB, the highest at 16-bit resolution

-TUE: The maximum value of FSR is ±0.1%

Integrate a 2.5V precise internal reference voltage

- Initial accuracy: ±5mV (maximum value)

-Low temperature drift: 2ppm/°C (typical value), DAC80508

• High driving capacity: 20mA, 0.5V power rail

Flexible output configuration

- User-selectable gains: 2, 1 or ½

- Reset to zero scale or calibration

- Clear the output function: DACx0508C

• Wide operating range:

- Power supply voltage: 2.7V to 5.5V

- Temperature range: -40 ° C to 125 ° C

50MHz SPI-compatible serial interface

Operate from -1.7V to 5.5V

-Daisy chain operation mode

-CRC error check

• Low power consumption: 0.6mA/ channel (5.5V)

• Small package: 3mm × 3mm, 16-pin WQFN

2. Instructions for DAC80508

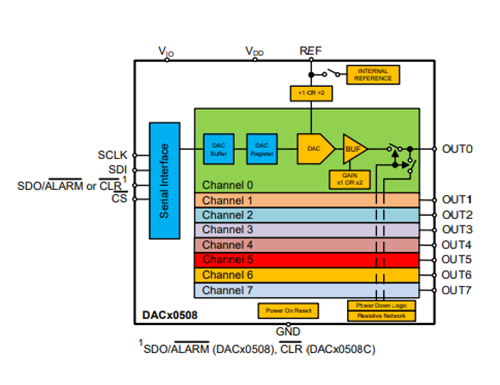

The DAC80508ZRTER is a member of the low-power eight-channel buffered voltage output digital-to-analog converter (DAC) pin-compatible series, featuring 16-bit resolution. The DAC80508ZRTER features an internal base voltage standard of 2.5V (5ppm/°C), eliminating the need for external precise references in most applications. The user-selectable gain configuration provides full-scale output voltages of 1.25V (gain = ½), 2.5V (gain = 1), or 5V (gain = 2). This device is powered by a single 2.7V to 5.5V power supply, has monotonicity, and can provide a high linearity of ±1 LSB INL.

The DAC80508ZRTER communicates via a serial interface with an operating clock rate up to 50MHz. The VIO pin enables the serial interface to operate within the range of 1.7V to 5.5V. The DAC80508ZRTER flexible interface supports the use of a wide range of industry-standard microprocessors and microcontrollers.

The DAC80508ZRTER adopts a power-on reset circuit to enable power-on and keep the DAC output at zero or intermediate level until a valid code is written into the device. This device consumes a current as low as 0.6mA/ channel (5.5V), and thus is suitable for battery-powered devices. Reduce the device current consumption to 15µA by the channel power-off function.

3. Application fields

The DAC80508ZRTER is suitable for a variety of application scenarios, including:

Optical fiber network

Wireless infrastructure

"Industrial automation"

• Data acquisition system

4. Technical Specifications

The main specifications of DAC80508ZRTER are as follows:

Number of digits: 16

Digital-to-analog converter number: 8

Establishment time: 5µs (typical value)

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI

Reference types: External, Internal

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 1.7V to 5.5V

INL/DNL (LSB) : ±0.5, ±0.5

Architecture: R-2R

Operating temperature: -40°C to 125°C

Device packaging: 16-WQFN (3x3)

Installation type: Surface mount type
