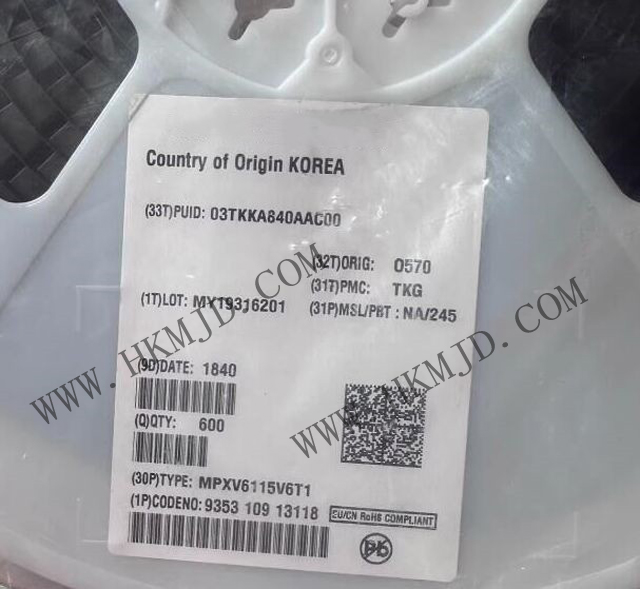

Mingjiada Supply (NXP) MPXV6115V6T1 Gauge And Absolute Pressure Sensor

Shenzhen Mingjiada Electronics Co., Ltd.——Long term supply [NXP] MPXV6115V6T1 Monolithic Silicon Pressure Sensor with Signal Conditioning, here are the product details of MPXV6115V6T1:

- Integrated on-chip bipolar operational amplifier circuitry and thin-film resistor network for high-level signals and temperature compensation

- The combination of advanced micromechanical technology, thin film metallisation and bipolar semiconductor processes provides a precise high level analogue output signal proportional to the applied pressure.

- With its small size and high reliability of on-chip integration, the MPXV6115V6T1 pressure sensor is a logical and cost-effective choice for system designers!

MPXV6115V6T1 Product Attributes:

Application: Board mounting

Pressure Type: Vacuum

Operating Pressure: -16.68PSI (-115kPa)

Output Type: Analogue Voltage

Output: 0.2V ~ 4.6V

Accuracy: ±1.5%

Voltage - Supply: 4.75V ~ 5.25V

Port Style: No Port

Characteristics: Temperature Compensated

Maximum Pressure: -58.02PSI (-400kPa)

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package/Housing: 8-SMD, Gull Wing

Supplier Device Package: 8-SOP

MPXV6115V6T1 Product Features:

Improved accuracy at high temperatures

Durable thermoplastic (PPS) surface-mount

Temperature compensated from -40°C to +125°C

Suitable for microprocessor or microcontroller based systems

Maximum error rate of 1.5% over the 0°C to 85°C range

Resistant to high humidity and common automotive media

MPXV6115V6T1 Applications:

Industrial control

Brake booster monitoring

Engine control

Industrial controls

Weather reporting equipment

Weather stations

Vacuum pump monitoring

Flight altimeter

Mingjiada Electronics has been supplying NXP MPXV6115V6T1 Gauge and Absolute Pressure Sensors (-115 to 115 kPa) for a long time. The MPXV6115V6T1 combines advanced micromachining technology, thin film metallisation and bipolar semiconductor processing to provide a precise, high level analogue output signal proportional to the applied pressure. For more product information about the MPXV6115V6T1, please contact Mingjiada Electronics.
