The ADUM240E1BRWZ is a four-channel digital isolator with iCoupler® technology. It is suitable for applications that require high-speed data transmission and strong isolation.

Introduction

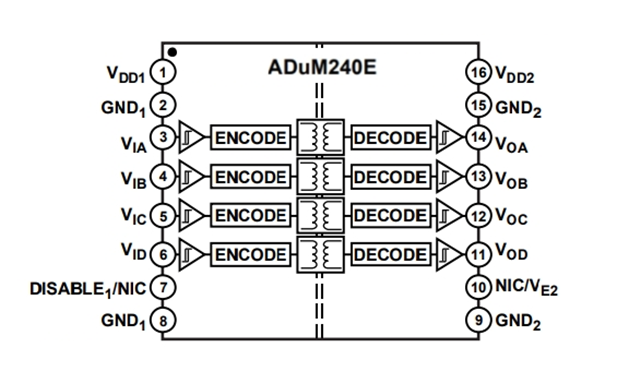

The ADUM240E1BRWZ is a robust 5kVrms four-channel digital isolator. The device has four forward channels and zero reverse channels, a maximum data rate of 150Mbps, an isolation voltage of 5,000 VRMS, and an operating temperature range of -40 ° C to +125 ° C ‌. The ADUM240E1BRWZ isolation device combines high-speed, complementary metal-oxide semiconductor (CMOS) with single-chip air-core transformer technology, offering outstanding performance characteristics over alternative devices such as optocouplers and other integrated couplers.

The ADUM240E1BRWZ has a maximum propagation delay of 13 ns and a pulse width distortion of less than 3 ns at 5 V. Has strict 3.0ns (maximum) channel matching. In addition, the ADUM240E1BRWZ operates with a 1.8V to 5V supply voltage, is compatible with low voltage systems, and is capable of voltage conversion across the isolation gate.

Unlike other optocouplers, DC correctness is ensured when there is no input logic conversion. The ADUM240E1BRWZ offers two different fail-safe options to switch the output to a predetermined state when the input power is not used or the input is disabled.

Application field

The ADUM240E1BRWZ is suitable for applications where high voltage isolation and multi-channel communication are required, including:

Industrial control

Medical equipment

Motor drive and power supply

Its low-power design and excellent performance characteristics make the ADUM240E1BRWZ excellent in these applications.

Basic parameter

Product Number: ADUM240E1BRWZ

Type: Digital isolator

Number of channels: 4

Enter -Side 1/ side 2:4/0

Channel type: Unidirectional

Voltage - isolation: 5000Vrms

Common mode transient immunity (min) : 75kV/µs

Data rate: 150Mbps

Propagation delay tpLH/tpHL (maximum) : 13ns, 13ns

Pulse width distortion (Max) : 3ns

Rise/fall time (typical) : 2.5ns, 2.5ns

Voltage - Power supply: 1.7V ~ 5.5V

Operating temperature: -40°C ~ 125°C

Device package: 16-SOIC

In addition, the ADUM240E1BRWZ isolator has the following features:

High common-mode transient immunity: 100 kV/µs

High immunity to radiation and conduction noise

Low propagation delay

13 ns (Max., 5 V)

15 ns (Max., 1.8V)

Maximum guaranteed data rate: 150 Mbps

Safety and Regulatory Certification (pending application)

UL Certification: 5000 V rms per minute, according to UL 1577

CSA Component Acceptance Notice 5A

VDE Certificate of conformity

DIN V VDE V 0884-10 (VDE V 0884-10):2006-12

VIORM = 849 V peak

Enhanced surge isolation voltage: 8000 V peak

CQC certification in line with GB4943.1-2011

Backward compatibility

ADuM240E1 ADuM241E1 / ADuM242E1 pin compatible ADuM2400 / ADuM2401 / ADuM2402

Low dynamic power consumption

1.8V to 5V level conversion

Operating temperature up to 125℃

Fail-safe High or low option

RoHS compliant 16-pin SOIC package

Certified for automotive applications
