Supply, Recovery (Maxim) MAX20810AFE 10A, integrated step-down switching regulator with PMBus telemetry.

Overview:

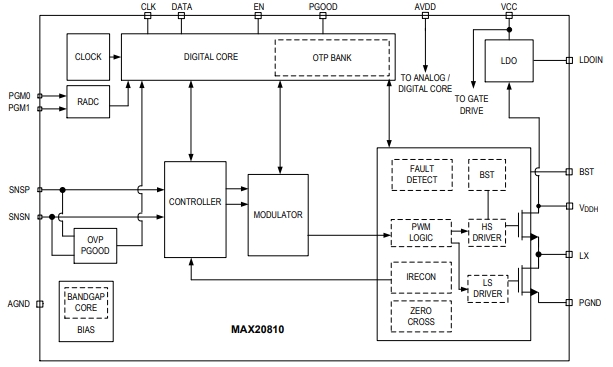

The MAX20810 is a fully integrated high efficiency buck DC-DC switching regulator with a PMBus interface. The kit is powered by a 2.7V to 16V input supply and supports an output regulation range of 0.4V to 5.8V, providing up to 10A load current. The switching frequency of the device can be configured between 500kHz and 2MHz, and the size and performance design can be optimized.

The MAX20810 features fixed frequency, current mode control with internal compensation. The IC uses an optional Advanced modulation scheme (AMS) to provide higher performance with fast load transients. Operation Settings and configurable features can be selected by connecting pin-binding resistors from PGM_ pins to ground or using the PMBus command.

Features

High power density and small number of components

Compact 4.3mm x 6.55mm, 16-pin FC2QFN package

Internal compensation

Single-power operation and integrated LDO for bias generation

Wide operating range

2.7V to 16V input voltage range

Output voltage range: 0.4V to 5.8V

Configurable switching frequency: 500kHz to 2MHz

Junction temperature range: -40 °C to +125°C

Optimized performance and efficiency

Peak efficiency: 93.8% (VDDH = 12V and VOUT = 1.8V)

High efficiency with optional external biased input power

AMS improves load transient response performance

Differential remote detection

PMBus interface

Adaptive voltage regulation is available in the reference range of 0.4V to 0.8V

Output current, output voltage, input voltage and junction temperature are monitored through PMBus telemetry function

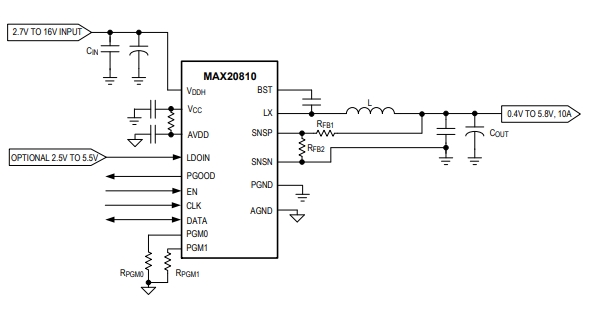

Typical application

• Data center power supply

• Communication equipment

• Network equipment

• Server and storage

• Point of load regulator
